For optimal thermal performance, it is recommended to use a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer, and to place thermal vias under the device to dissipate heat efficiently.
To ensure reliable operation across the entire operating temperature range, it is recommended to follow the recommended operating conditions, use a suitable thermal design, and consider the device's thermal derating.
To mitigate EMI and RFI, it is recommended to use a shielded enclosure, keep the device away from noise sources, use a common-mode choke, and ensure proper grounding and shielding of cables and connectors.
To select the correct input and output capacitors, consider the device's input and output voltage ratings, the desired ripple voltage, and the capacitor's ESR and ESL characteristics.
Using a different inductor value or type can affect the device's performance, efficiency, and stability. It is recommended to use the recommended inductor value and type to ensure optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DCR021205P Overview

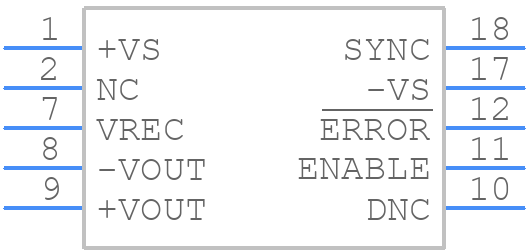

Use the download button to access the DCR021205P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DCR02,
or try a keyword search, such as Power Supply Modules
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
