DD104M4R2000-50 footprint, schematic symbol and 3D model by Positronic

Symbol

click to zoom

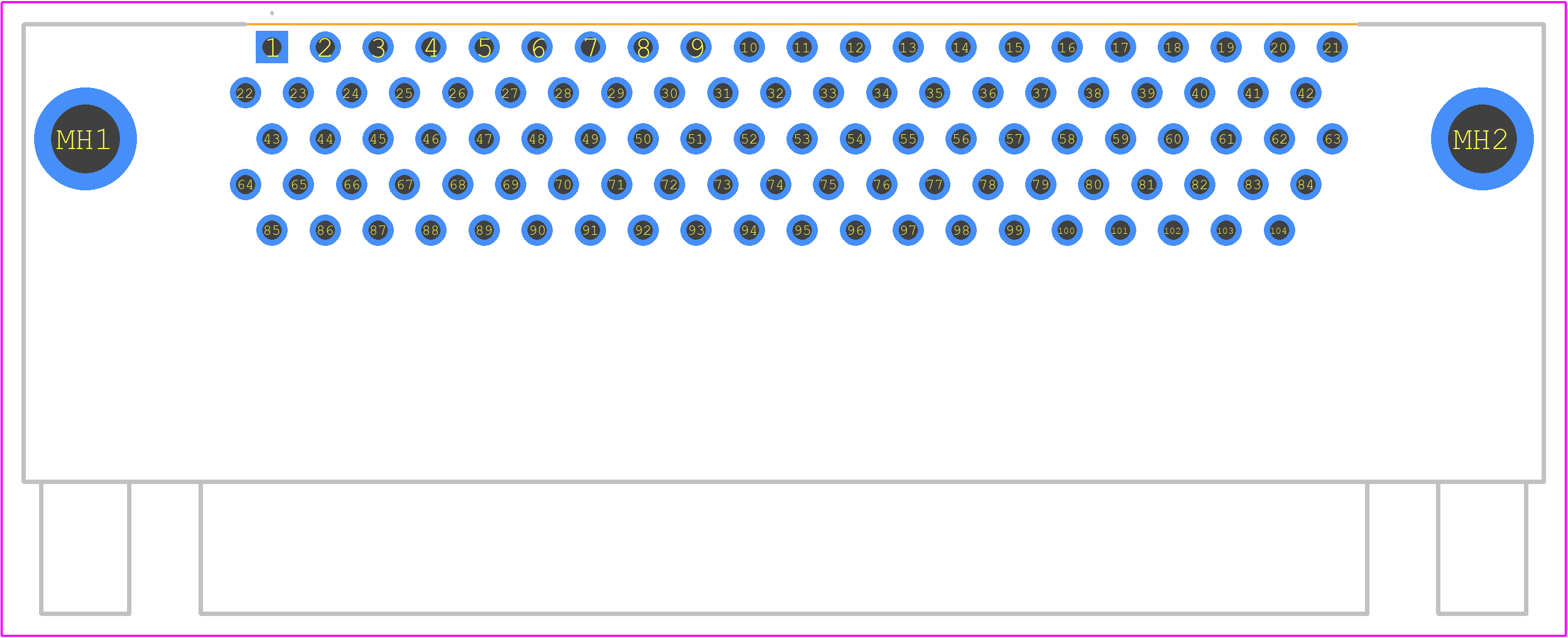

PCB Footprints

DD104M4R2000-50 - Positronic PCB footprint - Other - Other - DD104M4R2000-50-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DD104M4R2000-50
Part Number DD104M4R2000-50
Manufacturer Positronic
Pin Count 106
Part Category Connector
Package Category Other
Footprint Name Other - DD104M4R2000-50-1
Released Date Feb 11, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DD104M4R2000-50 Details

Manufacturer Part Number:
DD104M4R2000-50
Part Life Cycle Code:
Active
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Amphenol Positronic
YTEOL:
7.75
Additional Feature:
STANDARD: MIL-DTL-24308
Board Mounting Option:
SPLIT BOARD LOCK
Body Breadth:
0.668 inch
Body Depth:
0.778 inch
Body Length:
2.729 inch
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Gender:
MALE
Contact Pattern:
STAGGERED
Contact Style:
RND PIN-SKT
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
GLASS FILLED POLYESTER
MIL Conformance:
YES
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
#4-40
Mounting Option 2:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
5
Number of Rows Loaded:
5
Option:
GENERAL PURPOSE
PCB Contact Pattern:
STAGGERED
PCB Contact Row Spacing:
2.08 mm
Rated Current (Signal):
12 A
Shell Finish:
ZINC
Shell Material:
STEEL/BRASS
Shell Size:
6
Terminal Pitch:
2.41 mm
Termination Type:
SOLDER
Total Number of Contacts:
104
UL Flammability Code:
94V-0

DD104M4R2000-50 Frequently Asked Questions (FAQs)

The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for mating and unmating the connector. It's essential to follow this torque specification to ensure proper connection and prevent damage to the connector.
Yes, the DD104M4R2000-50 connector is designed to withstand high-vibration environments. It meets the vibration requirements of MIL-DTL-55302F, which includes vibration testing up to 20 G's.
Yes, the DD104M4R2000-50 connector is designed to operate in harsh environments. It has a temperature range of -55°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to follow the recommended storage and operating conditions to ensure the connector's reliability.
No, the DD104M4R2000-50 connector has a specific mating sequence that must be followed to ensure proper connection and prevent damage to the connector. The recommended mating sequence is outlined in the datasheet and should be strictly followed.
The recommended cleaning procedure for the DD104M4R2000-50 connector involves using a soft-bristled brush and a mild detergent solution. Avoid using harsh chemicals, abrasive materials, or high-pressure cleaning methods, as they can damage the connector's contacts or insulators.

Trust Checks

Community Provided

System Verified

Community Approved

DD104M4R2000-50 Overview

Use the download button to access the DD104M4R2000-50 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DD104, or try a keyword search, such as D Type Connectors

About Positronic

Positronic is a global manufacturer of high-reliability electronic connectors serving customers in a variety of industries, including aerospace, defense, industrial, and medical. Positronic's products include rectangular connectors, circular connectors, D-subminiature connectors, and power & hybrid connectors. The company also offers customized solutions for customers with unique needs. Its connectors are designed to meet demanding requirements for reliability, performance, and durability.
