DD15S4R7000/AA - Positronic

Description: 15 Position D-Sub, High Density Receptacle, Female Sockets Connector

Download DD15S4R7000/AA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DD15S4R7000/AA - Positronic - PCB symbol
click to zoom
PCB Footprints

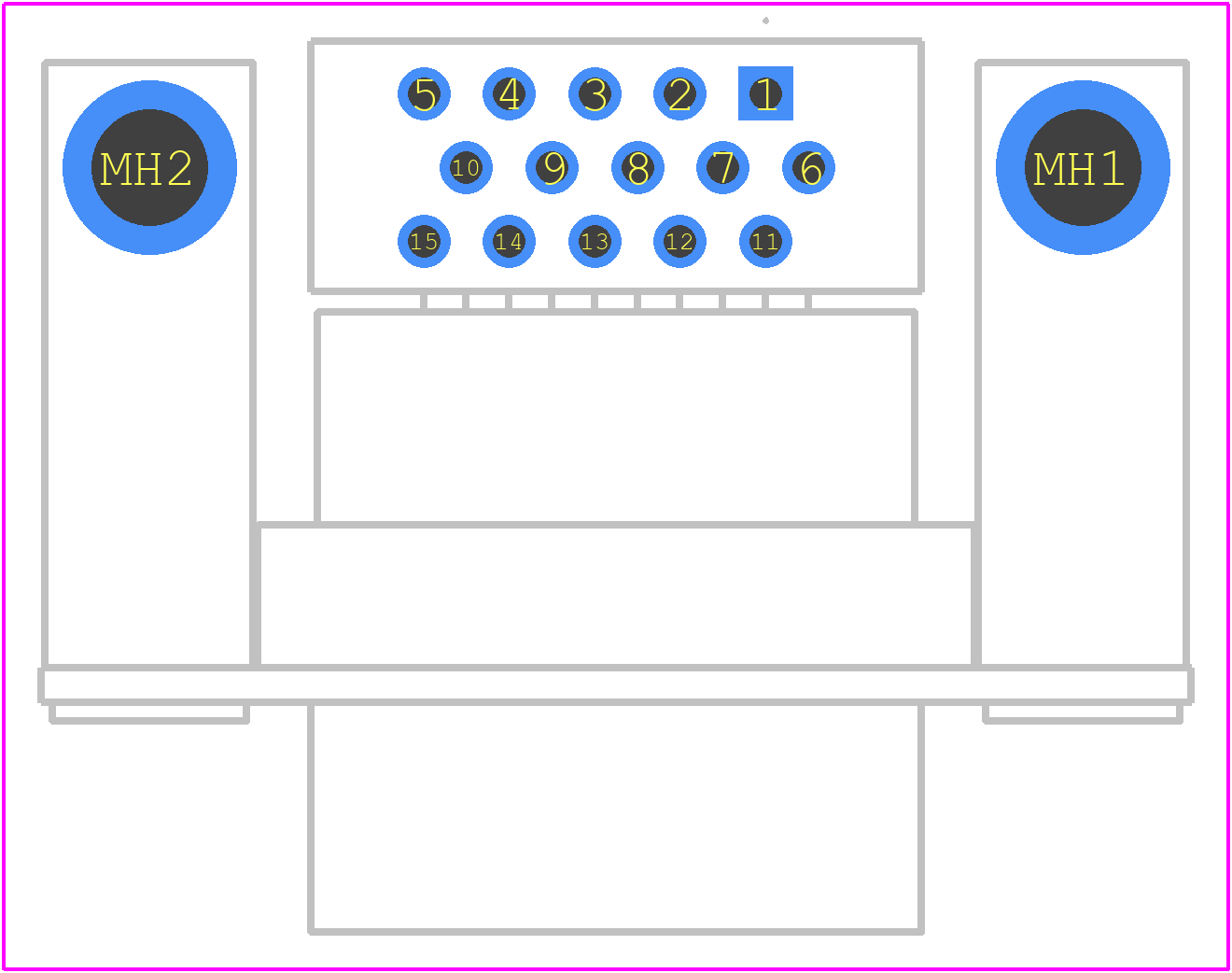

DD15S4R7000/AA - Positronic PCB footprint - Other - Other - DD15S4R7000/AA
click to zoom
3D Models
DD15S4R7000/AA - Positronic - 3D model - Other - DD15S4R7000/AA
click to zoom

DD15S4R7000/AA Details

  • Manufacturer Part Number:

    DD15S4R7000/AA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Amphenol Positronic

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH OVER NICKEL

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Material:

    COPPER ALLOY

DD15S4R7000/AA Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.0 Nm (4.4-8.8 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the DD15S4R7000/AA connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Cat 2, which means it can operate reliably in applications with vibrations up to 15 g (147 m/s²) in the frequency range of 2-2000 Hz.
  • The DD15S4R7000/AA connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand humid environments. However, it's essential to follow the recommended storage and operating conditions to ensure the connector's reliability and performance.
  • The DD15S4R7000/AA connector has a mating cycle life of 500 cycles minimum, which means it can withstand repeated connections and disconnections without compromising its performance or reliability.
  • While the DD15S4R7000/AA connector is designed for use with 14 AWG wire, it can accommodate wire sizes ranging from 12 AWG to 16 AWG. However, it's essential to follow the recommended wire stripping and termination procedures to ensure reliable connections.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DD15S4R7000/AA Overview

Use the download button to access the DD15S4R7000/AA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DD15S, or try a keyword search, such as D Type Connectors

About Positronic

Positronic is a global manufacturer of high-reliability electronic connectors serving customers in a variety of industries, including aerospace, defense, industrial, and medical. Positronic's products include rectangular connectors, circular connectors, D-subminiature connectors, and power & hybrid connectors. The company also offers customized solutions for customers with unique needs. Its connectors are designed to meet demanding requirements for reliability, performance, and durability.
