DD21.0123.1111 - SCHURTER

Description: CAD-Model shows variation protection class I, 4 holes for screws M3, 2-pole fuse holder/2-pole rocker switch non-illuminated, with cover

Download DD21.0123.1111 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DD21.0123.1111 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

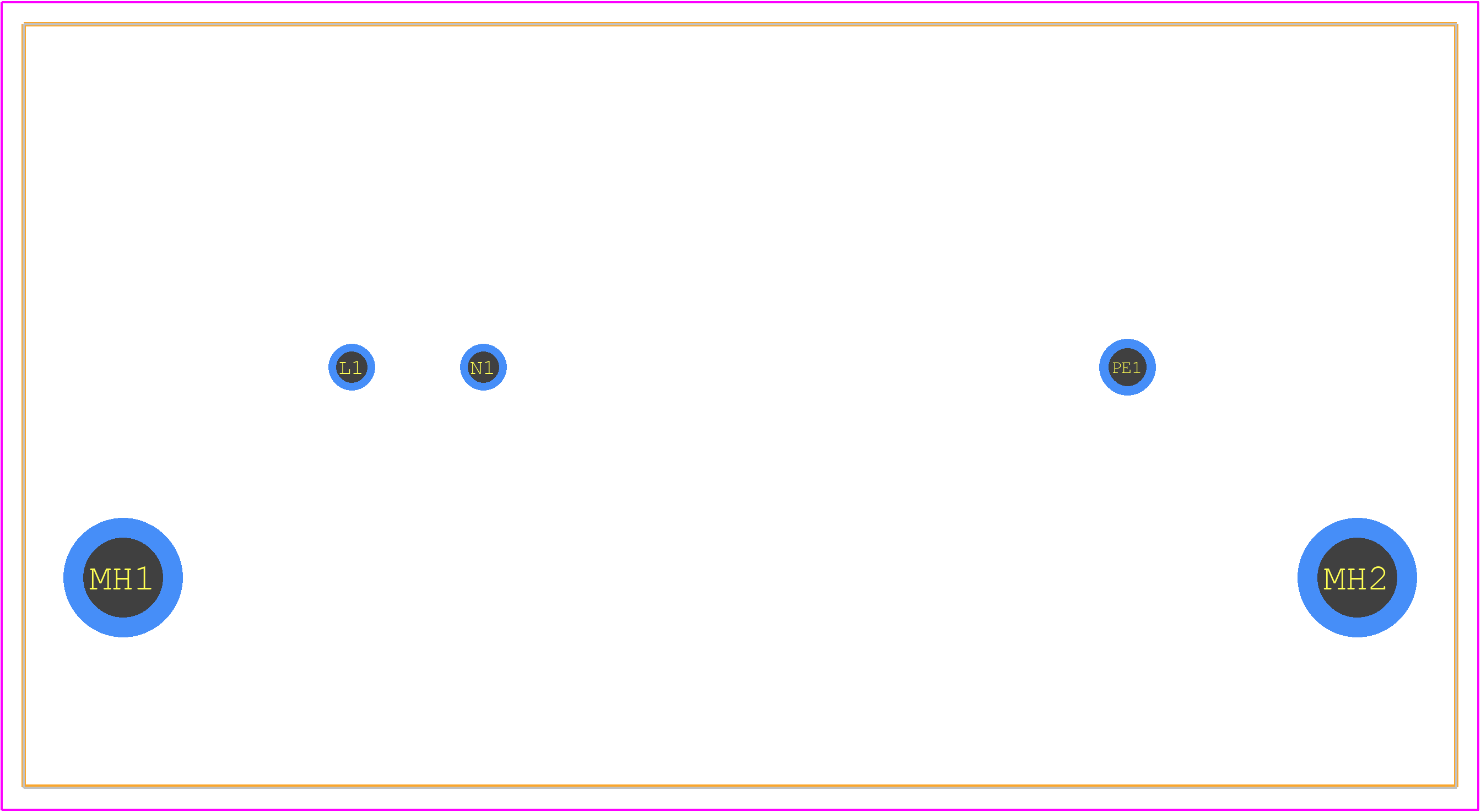

DD21.0123.1111 - SCHURTER PCB footprint - Other - Other - DD21.0123.1111-1
click to zoom
3D Models
DD21.0123.1111 - SCHURTER - 3D model - Other - DD21.0123.1111-1
click to zoom

DD21.0123.1111 Details

  • Manufacturer Part Number:

    DD21.0123.1111

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    15 Weeks, 5 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    STANDARDS: IEC 60320-1, IEC 60127-6, IEC 61058-1, IEC 60601-1, IEC 60335-1 UL, VDE

  • Body Breadth:

    1.27 inch

  • Body Depth:

    1.5 inch

  • Body Length:

    2.56 inch

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • IEC Conformance:

    YES

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    10A, 125VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    PANEL

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA; CUL

  • Shell Material:

    POLYETHYLENE

  • Termination Type:

    SCREW

  • Total Number of Contacts:

    3

DD21.0123.1111 Frequently Asked Questions (FAQs)

  • Schurter recommends a PCB pad size of 2.5mm x 1.5mm with a 1.5mm hole diameter for through-hole mounting. A minimum clearance of 1.5mm around the fuse body is also recommended to ensure safe and reliable operation.
  • The DD21.0123.1111 has a rated operating temperature range of -40°C to 125°C. While it can tolerate high temperatures, it's essential to consider the derating curve and ensure the fuse is not exposed to temperatures above 125°C for extended periods.
  • The DD21.0123.1111 is designed to handle inrush currents up to 100A for 10ms. However, it's crucial to consider the specific application's inrush current profile and ensure the fuse is not subjected to excessive stress.
  • Yes, the DD21.0123.1111 is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • Schurter recommends storing the DD21.0123.1111 in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Handling should be done with electrostatic discharge (ESD) precautions to prevent damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DD21.0123.1111 Overview

Use the download button to access the DD21.0123.1111 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DD21., or try a keyword search, such as Mains Power Connectors
