DD78M4R700S - Positronic

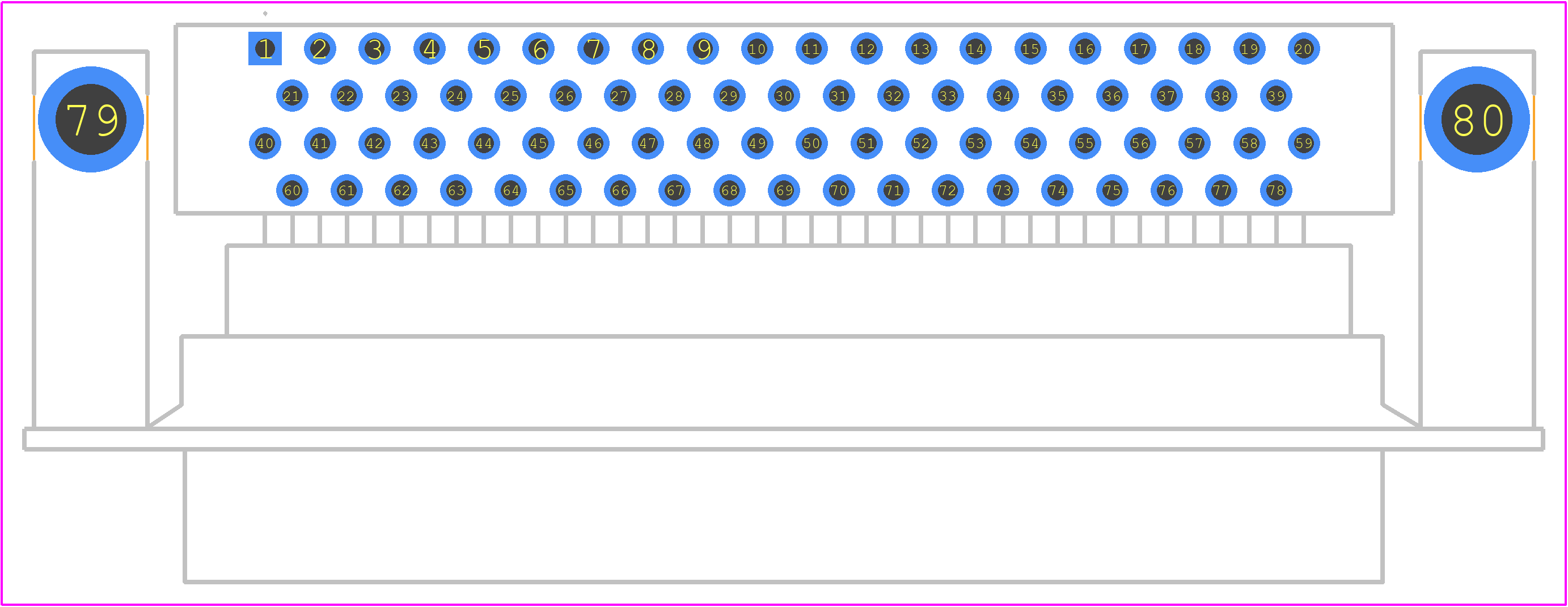

DD78M4R700S Details

• Manufacturer Part Number:

  DD78M4R700S

• Part Life Cycle Code:

  Active

• Country Of Origin:

  USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Amphenol Positronic

• YTEOL:

  9

• Board Mounting Option:

  SPLIT BOARD LOCK

• Body Breadth:

  0.605 inch

• Body Depth:

  0.742 inch

• Body Length:

  2.626 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Finish Mating:

  GOLD FLASH OVER NICKEL

• Contact Finish Termination:

  Gold (Au) - with Nickel (Ni) barrier

• Contact Gender:

  MALE

• Contact Material:

  COPPER ALLOY

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  10 mΩ

• Contact Style:

  RND PIN-SKT

• Dielectric Withstanding Voltage:

  1400VAC V

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLUE

• Insulator Material:

  GLASS FILLED POLYESTER

• JESD-609 Code:

  e4

• Mating Contact Row Spacing:

  0.082 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  #4-40

• Mounting Option 2:

  THREADED

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  4

• Number of Rows Loaded:

  4

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.08 mm

• Rated Current (Signal):

  12 A

• Reference Standard:

  UL, CSA

• Shell Material:

  STEEL

• Shell Size:

  5/D

• Terminal Length:

  0.125 inch

• Terminal Pitch:

  2.41 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  78

• UL Flammability Code:

  94V-0
