DDB6U134N16RR - Infineon

Description: Infineon DDB6U134N16RR, 3-phase Bridge Rectifier Module, 35A 1600V AG-ECONO2-7

Download DDB6U134N16RR Model
Schematic

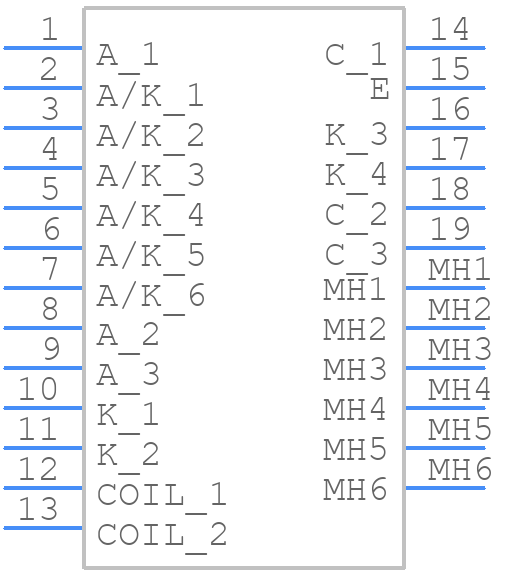

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

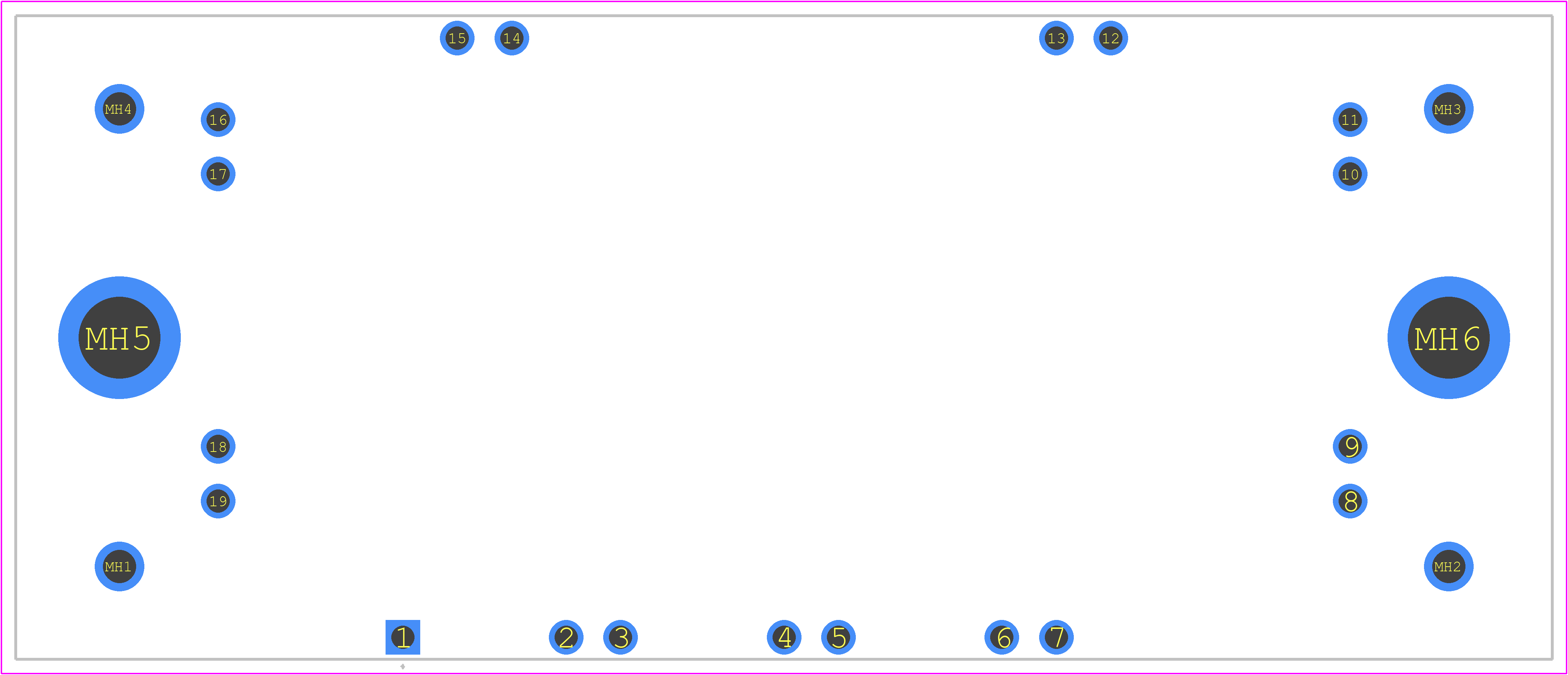

DDB6U134N16RR - Infineon PCB footprint - Other - Other - DDB6U134N16RR
click to zoom
3D Models
DDB6U134N16RR - Infineon  - 3D model - Other - DDB6U134N16RR
click to zoom

DDB6U134N16RR Details

  • Manufacturer Part Number:

    DDB6U134N16RR

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    19

  • Country Of Origin:

    Hungary

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    70 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    SINGLE WITH BUILT-IN DIODE, THREE PHASE DIODE BRIDGE AND THERMISTOR

  • JESD-30 Code:

    R-XUFM-X19

  • Number of Elements:

    1

  • Number of Terminals:

    19

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

DDB6U134N16RR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the DDB6U134N16RR is -40°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended thermal management guidelines, including proper heat sinking, thermal interface materials, and airflow management.
  • The recommended gate drive voltage for the DDB6U134N16RR is between 10V and 15V, with a maximum voltage of 20V.
  • To protect the device, use a voltage regulator or a voltage supervisor to ensure the input voltage remains within the recommended operating range. Additionally, consider using overvoltage protection (OVP) and undervoltage protection (UVP) circuits.
  • The maximum allowable current for the DDB6U134N16RR is 134A, with a maximum pulsed current of 268A.
