DDMP50SJA197 - ITT CANNON

Description: Conn D-Subminiature SKT 50 POS Solder RA Thru-Hole 9Terminal 1Port

Download DDMP50SJA197 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DDMP50SJA197 - ITT CANNON - PCB symbol
click to zoom
PCB Footprints

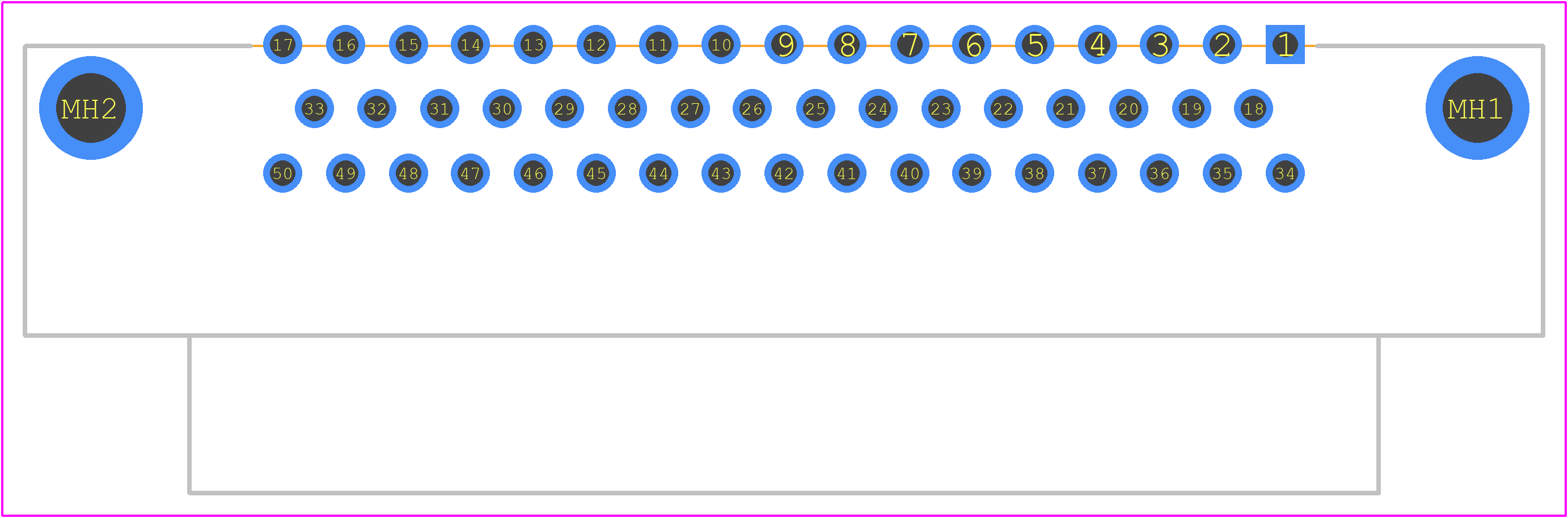

DDMP50SJA197 - ITT CANNON PCB footprint - Other - Other - DDMP50SJA197-4
click to zoom
3D Models
DDMP50SJA197 - ITT CANNON - 3D model - Other - DDMP50SJA197-4
click to zoom

DDMP50SJA197 Details

  • Manufacturer Part Number:

    DDMP50SJA197

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    ITT Interconnect Solutions

  • YTEOL:

    9

  • Additional Feature:

    PANEL MOUNT

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Shell Size:

    5/D

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

DDMP50SJA197 Frequently Asked Questions (FAQs)

  • The operating temperature range of the DDMP-50S-J-A197 connector is -55°C to 125°C.
  • Yes, the DDMP-50S-J-A197 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial systems.
  • The DDMP-50S-J-A197 connector has a mating cycle life of 500 cycles minimum, ensuring reliable connections over an extended period.
  • Yes, the DDMP-50S-J-A197 connector is part of the DDMP series and is compatible with other connectors in the same series, allowing for flexibility in design and application.
  • The typical lead time for delivery of the DDMP-50S-J-A197 connector varies depending on the supplier and quantity, but it is usually around 6-12 weeks.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DDMP50SJA197 Overview

Use the download button to access the DDMP50SJA197 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DDMP5, or try a keyword search, such as D Type Connectors
