DDMV50SNA197 - ITT CANNON

Description: D-Sub Standard Connectors DSUB 50 F PCB STR G TIN

Download DDMV50SNA197 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DDMV50SNA197 - ITT CANNON - PCB symbol
click to zoom
PCB Footprints

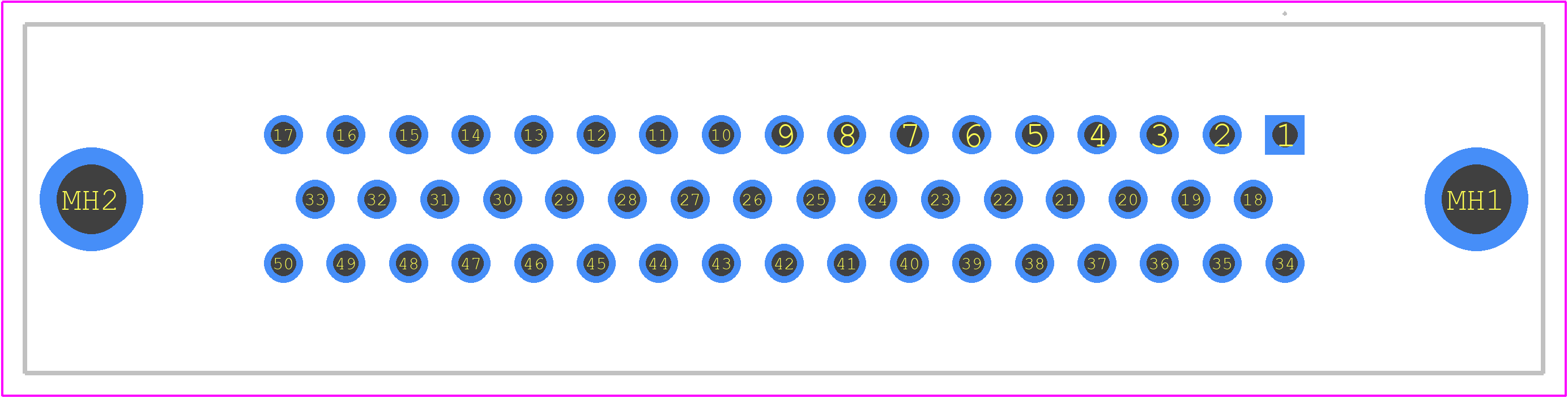

DDMV50SNA197 - ITT CANNON PCB footprint - Other - Other - DDMV50SNA197-4
click to zoom
3D Models
DDMV50SNA197 - ITT CANNON - 3D model - Other - DDMV50SNA197-4
click to zoom

DDMV50SNA197 Details

  • Manufacturer Part Number:

    DDMV50SNA197

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    ITT Interconnect Solutions

  • YTEOL:

    9

  • Additional Feature:

    PANEL MOUNT

  • Body Breadth:

    0.605 inch

  • Body Depth:

    0.3 inch

  • Body Length:

    2.644 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    STAGGERED

  • Contact Resistance:

    55 mΩ

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.109 inch

  • Mating Contact Row Spacing:

    0.112 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    HOLE .112-.124

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    3

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.8448 mm

  • Rated Current (Signal):

    5 A

  • Reference Standard:

    UL, CSA

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Shell Size:

    5/D

  • Terminal Length:

    0.152 inch

  • Terminal Pitch:

    2.7686 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

DDMV50SNA197 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the DDMV-50S-N-A197 is designed to withstand high-vibration environments. ITT Interconnect Solutions has tested this connector to meet the requirements of MIL-DTL-83513, which includes vibration testing. However, it's crucial to follow proper installation and mounting procedures to ensure the connector's performance in such applications.
  • The DDMV-50S-N-A197 connector is rated for operation in temperatures ranging from -55°C to 125°C (-133°F to 257°F). However, it's essential to note that the temperature rating may vary depending on the specific application and environmental conditions.
  • The DDMV-50S-N-A197 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's crucial to consult the datasheet and ITT Interconnect Solutions' documentation for specific information on environmental resistance and any necessary precautions or considerations.
  • While the DDMV-50S-N-A197 is designed for use with AWG 20-24 wire, it's possible to use it with other wire sizes. However, it's essential to consult with ITT Interconnect Solutions or a qualified engineer to ensure the connector's performance and reliability with the specific wire size and application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DDMV50SNA197 Overview

Use the download button to access the DDMV50SNA197 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DDMV5, or try a keyword search, such as D Type Connectors
