Adam Technologies recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 2 oz copper thickness is recommended for the power traces. Additionally, a thermal pad on the bottom of the module can be connected to a heat sink or a thermal interface material for improved heat dissipation.
To ensure reliable power sequencing and voltage regulation, Adam Technologies recommends using an external power sequencer or a voltage regulator with a soft-start feature to prevent inrush currents and voltage overshoots. Additionally, decoupling capacitors should be placed close to the module's power pins to filter out noise and ripple.
While the datasheet specifies an operating temperature range of -40°C to 85°C, Adam Technologies recommends derating the module's power output by 1% per degree Celsius above 70°C to ensure reliable operation and prevent overheating.
Adam Technologies recommends using a logic analyzer or an oscilloscope to monitor the module's digital signals and power rails. Additionally, checking the module's thermal performance using an infrared thermometer or a thermal camera can help identify overheating issues. Consult the datasheet and application notes for specific troubleshooting guidelines.
To minimize EMI and EMC issues, Adam Technologies recommends using a shielded enclosure, keeping the module away from sensitive analog circuits, and using EMI filters or common-mode chokes on the power lines. Additionally, ensure that the PCB layout and component placement follow good EMI design practices.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DE09-PA-M1 Overview

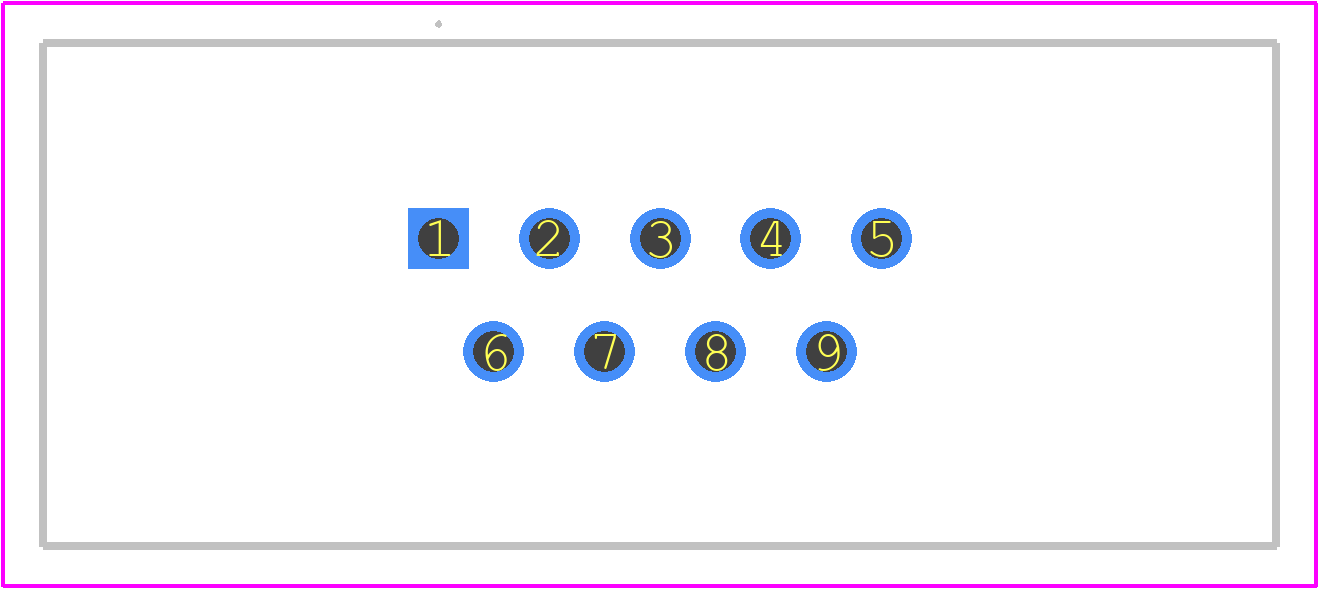

Use the download button to access the DE09-PA-M1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DE09-,
or try a keyword search, such as D Type Connectors
