DE11XRA680KA4BQ01F - Murata Electronics

Description: Capacitor 68pF ±10% DE1 D=9mm T=5mm F=10mm d=0.6mm

Download DE11XRA680KA4BQ01F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DE11XRA680KA4BQ01F - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

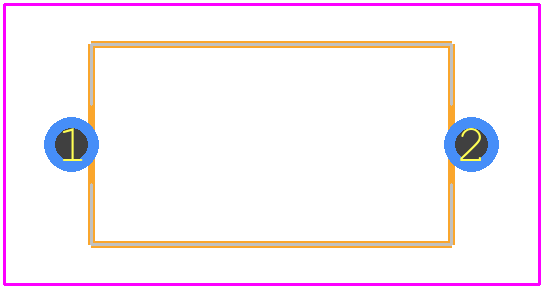

DE11XRA680KA4BQ01F - Murata Electronics PCB footprint - Other - Other - DE1 D=9mm T=5mm F=10mm d=0.6mm
click to zoom
3D Models
DE11XRA680KA4BQ01F - Murata Electronics - 3D model - Other - DE1 D=9mm T=5mm F=10mm d=0.6mm
click to zoom

DE11XRA680KA4BQ01F Details

  • Manufacturer Part Number:

    DE11XRA680KA4BQ01F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Capacitance:

    0.000068 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Diameter:

    9 mm

  • Dielectric Material:

    CERAMIC

  • Height:

    9 mm

  • JESD-609 Code:

    e3

  • Length:

    9 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    YES

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    DISK PACKAGE

  • Package Style:

    null

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    500 V

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    SL

  • Temperature Coefficient:

    -1000/+350ppm/Cel ppm/°C

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    WIRE

  • Width:

    5 mm
