DE1a1b-24V - Panasonic

Description: Compliant with European safety standards, 1 Form A/2 Form A/1 Form A 1 Form B 10 A/8 A Polarized power relays

Download DE1a1b-24V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

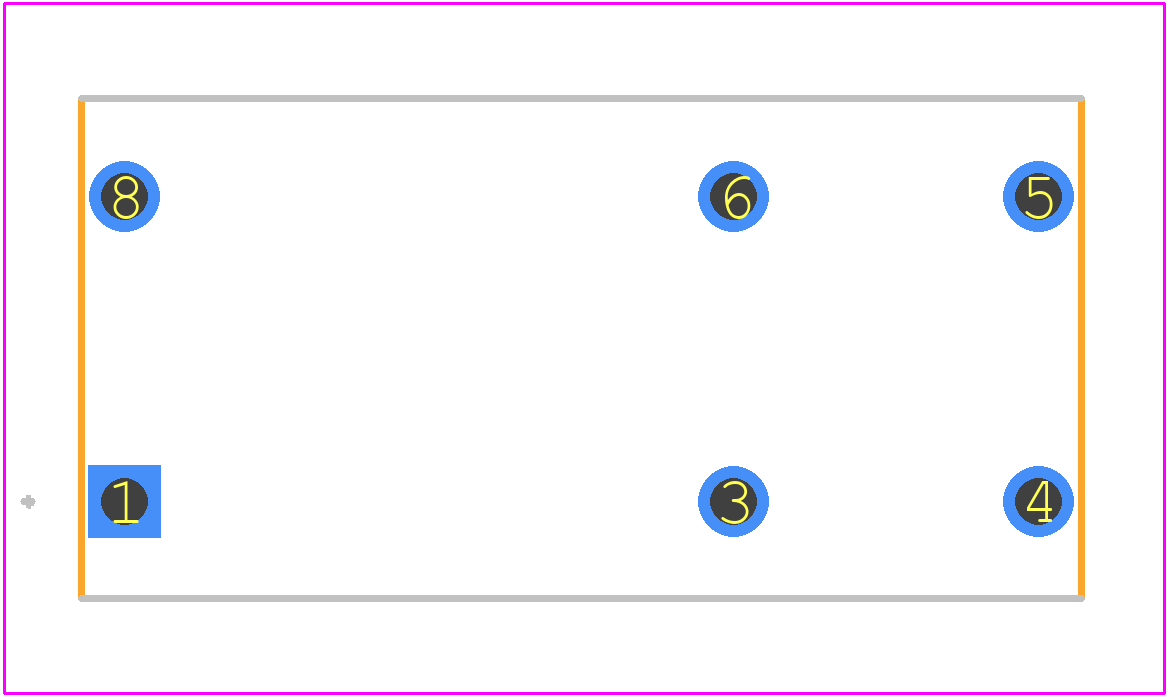

DE1a1b-24V - Panasonic PCB footprint - Other - Other - DE_Single_Side_Stable
click to zoom
3D Models
DE1a1b-24V - Panasonic  - 3D model - Other - DE_Single_Side_Stable
click to zoom

DE1a1b-24V Details

  • Manufacturer Part Number:

    DE1A1B-24V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6.8

  • Additional Feature:

    RELEASE TIME WITHOUT DIODE

  • Body Breadth:

    12.5 mm

  • Body Height:

    12 mm

  • Body Length or Diameter:

    25 mm

  • Coil Current(DC)-Max:

    0.008 A

  • Coil Operate Voltage(DC):

    16.8 V

  • Coil Power:

    200 mW

  • Coil Release Voltage(DC):

    2.4 V

  • Coil Resistance:

    2880 Ω

  • Coil Voltage(DC)-Max:

    24 V

  • Coil Voltage-Nom:

    24 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Power Rating R Load:

    2000VA@440VAC

  • Contact (AC) Max Rating R Load:

    8A@250VAC

  • Contact Current(AC)-Max:

    8 A

  • Contact Current(DC)-Max:

    8 A

  • Contact (DC) Max Power Rating R Load:

    240W@230VDC

  • Contact (DC) Max Rating R Load:

    8A@30VDC

  • Contact Resistance:

    30 mΩ

  • Contact Voltage(AC)-Max:

    250 V

  • Contact Voltage(DC)-Max:

    30 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • End Contact Material:

    Silver Tin Oxide

  • Input Switching Control Type:

    Random

  • Insulation Resistance:

    1000000000 Ω

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Terminals:

    6

  • Operate Time:

    10 ms

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    25mm x 12.5mm x 12mm

  • Reference Standard:

    CSA; UL; VDE

  • Relay Action:

    MOMENTARY

  • Relay Form:

    1 FORM A,B

  • Relay Function:

    DPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    5 ms

  • Surface Mount:

    NO

  • Terminal Length:

    0.003500127000254001 inch

  • Termination Type:

    SOLDER

DE1a1b-24V Frequently Asked Questions (FAQs)

  • The maximum switching frequency of the DE1A1B-24V relay is 20 Hz. Exceeding this frequency may lead to reduced relay life or failure.
  • The DE1A1B-24V relay is designed to operate in temperatures ranging from -40°C to 85°C. Operating the relay outside this temperature range may affect its performance and lifespan.
  • The recommended PCB layout and spacing for the DE1A1B-24V relay can be found in the Panasonic application note AN131, which provides guidelines for proper relay mounting and spacing to ensure reliable operation.
  • To ensure proper driving and control of the DE1A1B-24V relay, follow the recommended drive circuit and control signal specifications outlined in the datasheet. Additionally, consider using a relay driver IC or a dedicated relay control circuit to ensure reliable operation.
  • When using the DE1A1B-24V relay, ensure that the relay is used within its specified ratings and that proper safety precautions are taken to prevent electrical shock, fire, or other hazards. Follow relevant safety standards and guidelines, such as UL and IEC, to ensure safe and reliable operation.
