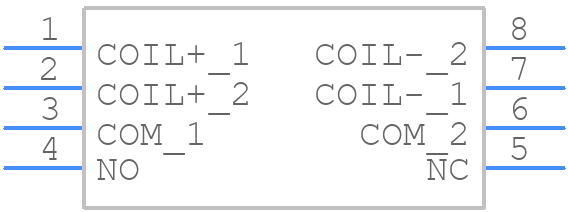

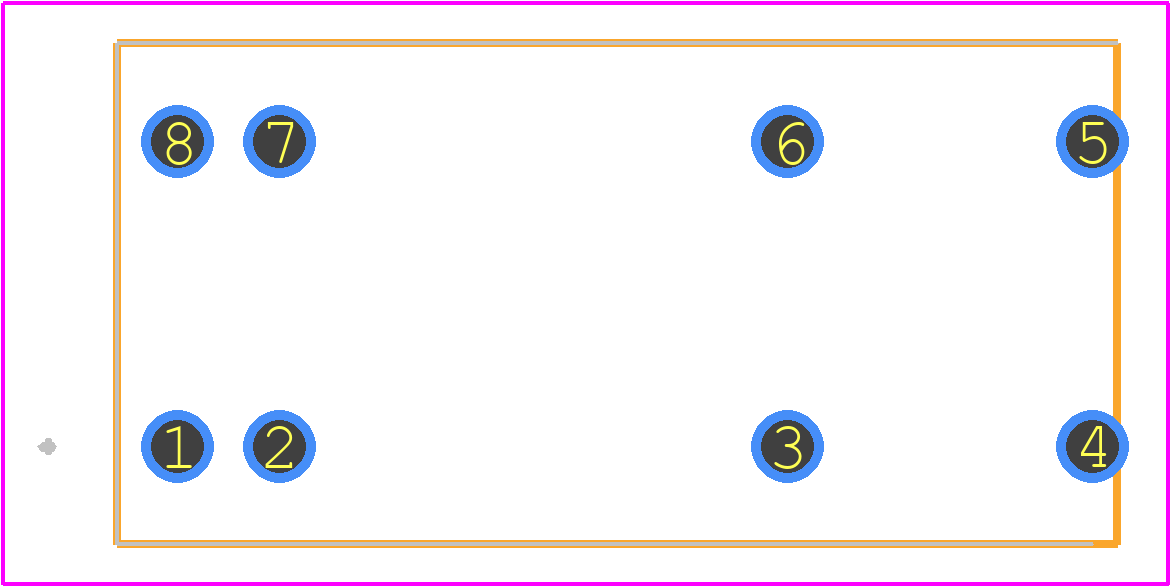

DE1a1b-L2-24V - Panasonic

DE1a1b-L2-24V Details

• Manufacturer Part Number:

  DE1A1B-L2-24V

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Factory Lead Time:

  14 Weeks

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  6.8

• Additional Feature:

  RELEASE TIME WITHOUT DIODE

• Body Breadth:

  12.5 mm

• Body Height:

  12 mm

• Body Length or Diameter:

  25 mm

• Coil Current(DC)-Max:

  0.008 A

• Coil Operate Voltage(DC):

  16.8 V

• Coil Power:

  200 mW

• Coil Release Voltage(DC):

  16.8 V

• Coil Resistance:

  2880 Ω

• Coil Voltage(DC)-Max:

  24 V

• Coil Voltage-Nom:

  24 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  2000VA@440VAC

• Contact (AC) Max Rating R Load:

  8A@250VAC

• Contact Current(AC)-Max:

  8 A

• Contact Current(DC)-Max:

  8 A

• Contact (DC) Max Power Rating R Load:

  240W@230VDC

• Contact (DC) Max Rating R Load:

  8A@30VDC

• Contact Resistance:

  30 mΩ

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  30 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  Silver Tin Oxide

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  6

• Operate Time:

  10 ms

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX; TUBE

• Physical Dimension:

  25mm x 12.5mm x 12mm

• Reference Standard:

  CSA; UL; VDE

• Relay Action:

  LATCHED

• Relay Form:

  1 FORM A,B

• Relay Function:

  DPST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  5 ms

• Surface Mount:

  NO

• Terminal Length:

  0.003500127000254001 inch

• Termination Type:

  SOLDER
