It is recommended to use a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern under the device to ensure optimal thermal performance.
To ensure reliable communication, use a shielded cable, keep the cable length as short as possible, and use a common mode choke or ferrite bead to filter out electromagnetic interference (EMI).
The DEI1016A can operate safely within a temperature range of -40°C to 85°C, but it's recommended to derate the device's power dissipation above 70°C to ensure reliability.
Yes, the DEI1016A is designed to withstand vibrations up to 10G, but it's recommended to secure the device using a suitable mounting method, such as a screw or adhesive, to prevent mechanical stress.
Use a logic analyzer or oscilloscope to monitor the device's signals, check the power supply voltage and current, and verify the device's configuration and programming to identify the root cause of the issue.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DEI1016A Overview

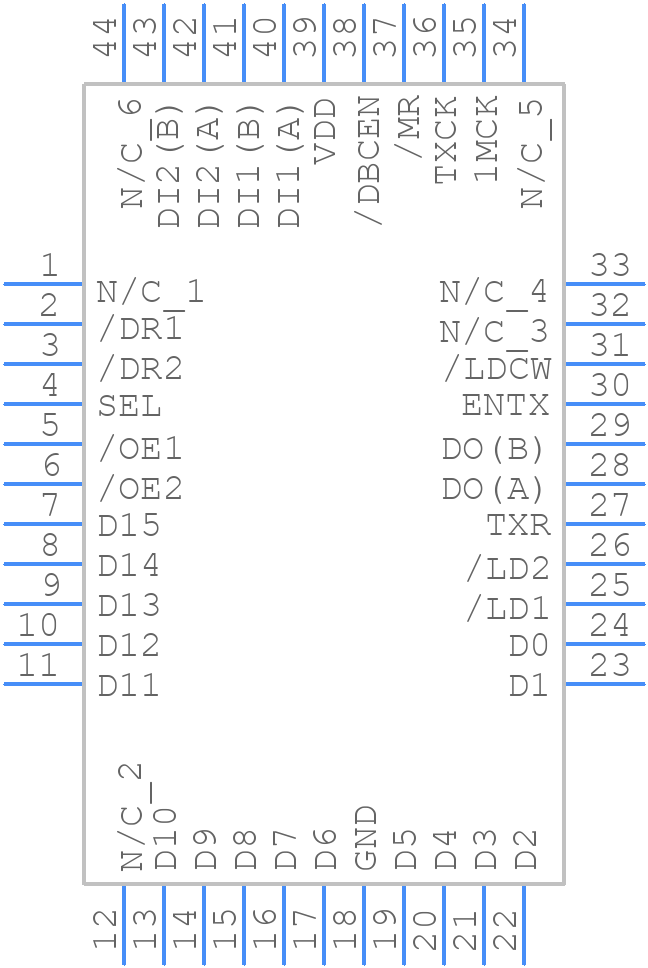

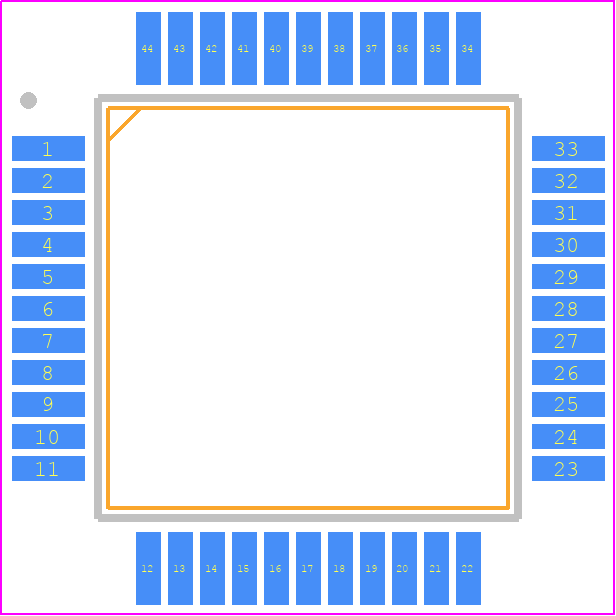

Use the download button to access the DEI1016A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DEI10,
or try a keyword search, such as Line Driver or Receivers
