DEMC9SJA197 footprint, schematic symbol and 3D model by ITT CANNON

Symbol

click to zoom

PCB Footprints

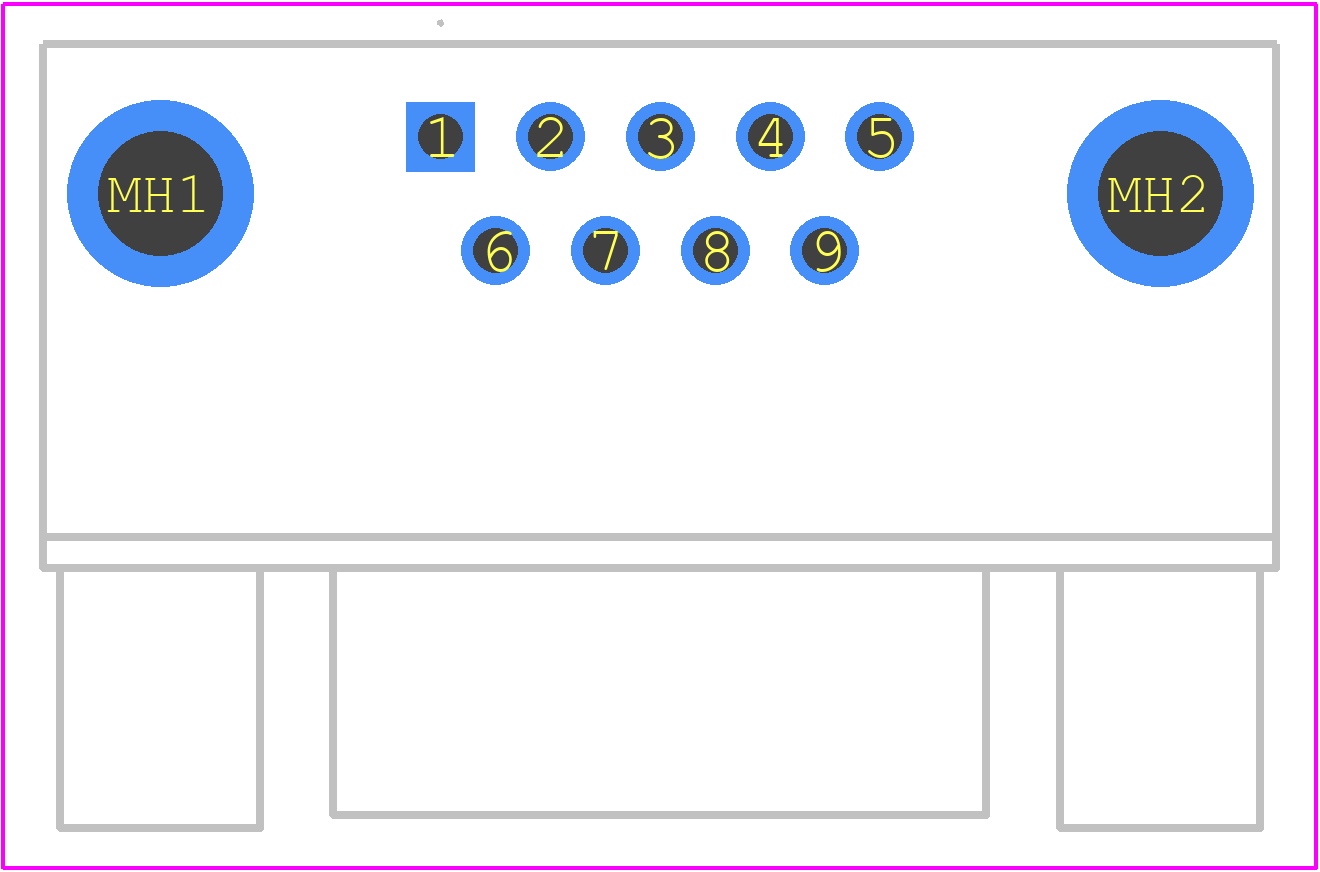

DEMC9SJA197 - ITT CANNON PCB footprint - Other - Other - DEMC9SJA197-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DEMC9SJA197
Part Number DEMC9SJA197
Manufacturer ITT CANNON
Pin Count 11
Part Category Connector
Package Category Other
Footprint Name Other - DEMC9SJA197-2
Released Date Aug 1, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DEMC9SJA197 Details

Manufacturer Part Number:
DEMC9SJA197
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Compliant
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
19 Weeks
Manufacturer:
ITT Interconnect Solutions
YTEOL:
8.5
Additional Feature:
PANEL MOUNT
Body/Shell Style:
RECEPTACLE
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYETHYLENE
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Shell Finish:
TIN
Shell Material:
STEEL
Shell Size:
1/E
Termination Type:
SOLDER
Total Number of Contacts:
9
UL Flammability Code:
94V-0

DEMC9SJA197 Frequently Asked Questions (FAQs)

The recommended torque value for the DEMC-9S-J-A197 connector is 10-15 in-lbs (1.1-1.7 Nm) for the screw locks, and 5-10 in-lbs (0.6-1.1 Nm) for the jack screws.
Yes, the DEMC-9S-J-A197 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
Yes, the DEMC-9S-J-A197 connector is designed to operate in harsh environments, with a temperature range of -55°C to 125°C and a humidity rating of 95% RH at 40°C.
The DEMC-9S-J-A197 connector has a mating cycle life of 500 cycles minimum, with a maximum of 1000 cycles.
Yes, the DEMC-9S-J-A197 connector is RoHS and REACH compliant, meeting the requirements of EU Directive 2011/65/EU and EU Regulation EC 1907/2006.

Trust Checks

Community Provided

System Verified

Community Approved

DEMC9SJA197 Overview

Use the download button to access the DEMC9SJA197 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DEMC9, or try a keyword search, such as D Type Connectors
