The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the DEMG-9S-J-A197 connector. It's essential to follow the recommended torque value to ensure proper mating and prevent damage to the connector.
Yes, the DEMG-9S-J-A197 connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for applications with high vibration, shock, and extreme temperatures.
Yes, the DEMG-9S-J-A197 connector is designed to operate in harsh environments, including extreme temperatures, humidity, and exposure to chemicals. It meets the requirements of MIL-DTL-38999, which ensures its reliability in demanding applications.
The DEMG-9S-J-A197 connector is designed to operate up to 2 GHz, making it suitable for high-frequency applications, including RF and microwave systems.
Yes, the DEMG-9S-J-A197 connector is part of the DEMG series, and it is compatible with other connectors in the same series. This allows for flexibility in design and ease of integration into existing systems.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DEMG9SJA197 Overview

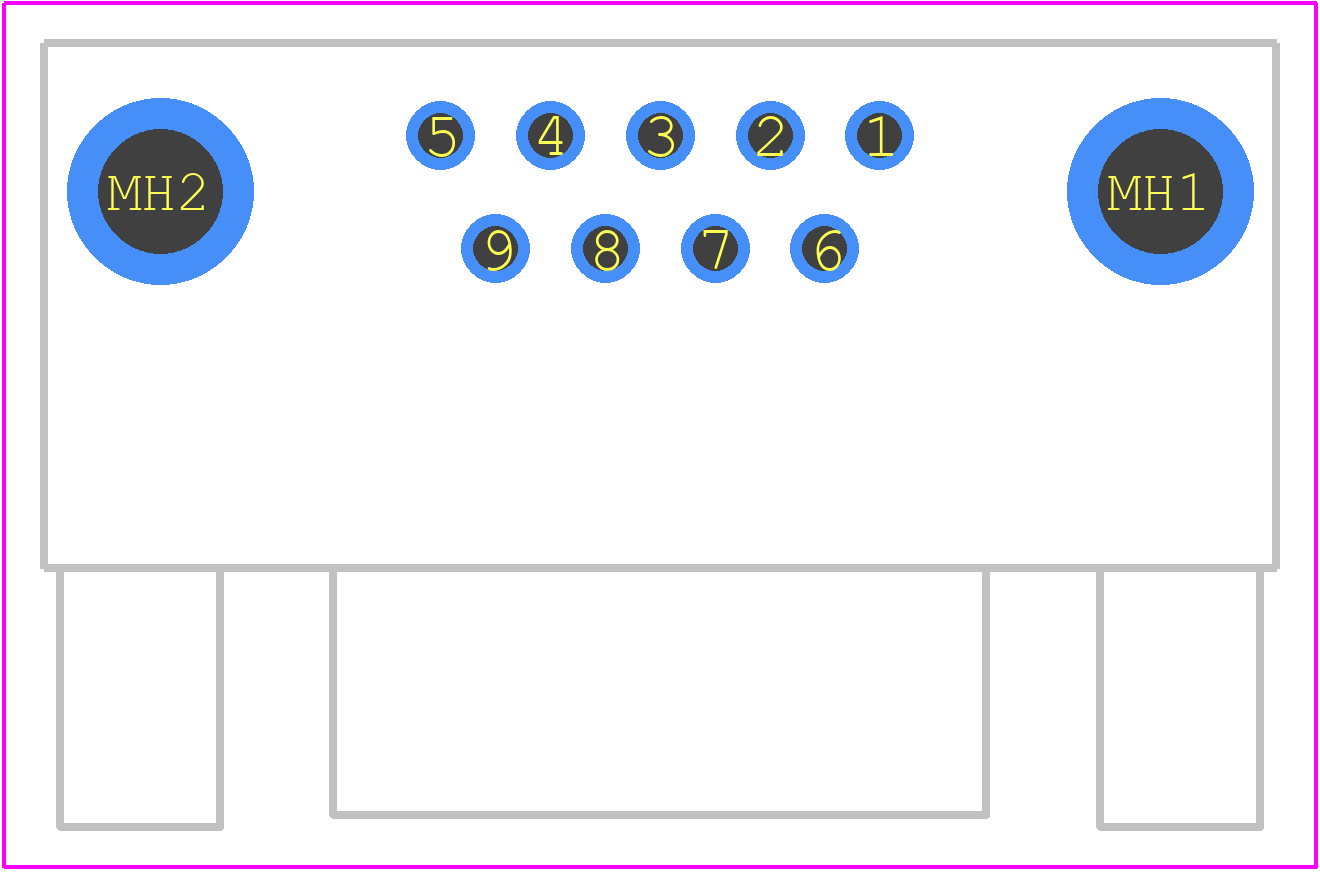

Use the download button to access the DEMG9SJA197 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DEMG9,
or try a keyword search, such as D Type Connectors
