DF07M30 - Positronic

Description: Power to the Board DragonFly Gold Plating 7 Pos16 AWG Copper Alloy Male Straight Angle 2 Row

Download DF07M30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DF07M30 - Positronic - PCB symbol
click to zoom
PCB Footprints

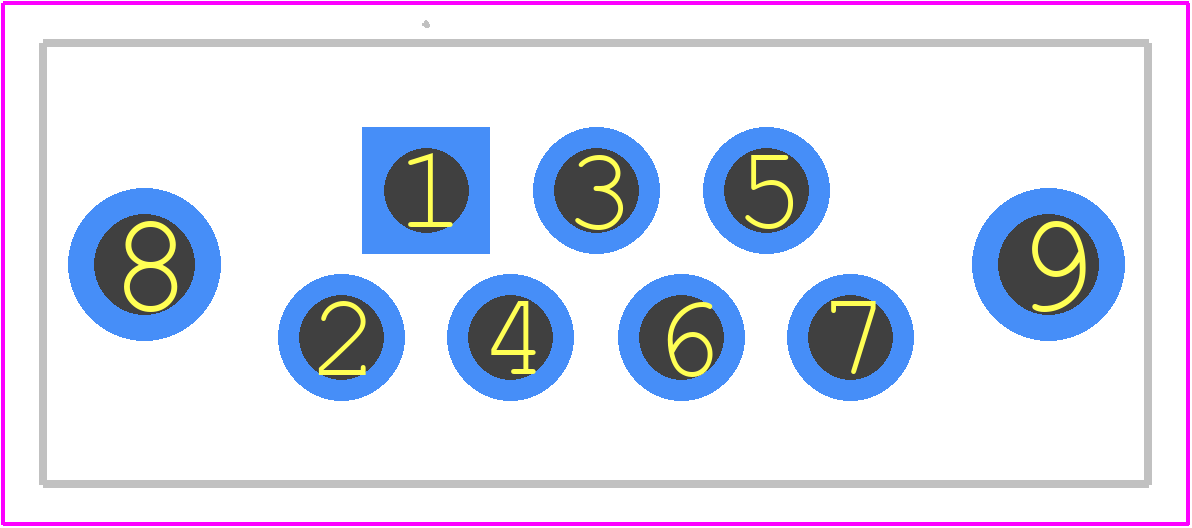

DF07M30 - Positronic PCB footprint - Other - Other - DF07M30-2
click to zoom
3D Models
DF07M30 - Positronic - 3D model - Other - DF07M30-2
click to zoom

DF07M30 Details

  • Manufacturer Part Number:

    DF07M30

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Amphenol Positronic

  • YTEOL:

    5

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Gender:

    MALE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYAMIDE

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    7

  • UL Flammability Code:

    94V-0

DF07M30 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 Nm to 1.5 Nm (0.37 lbf-in to 1.06 lbf-in).
  • Yes, the DF07M30 is designed to withstand high-vibration environments. It meets the IEC 61373 Cat. 2 vibration standard.
  • The operating temperature range of the DF07M30 is -55°C to 125°C (-133°F to 257°F).
  • Yes, the DF07M30 is compatible with lead-free soldering processes and meets the RoHS and REACH directives.
  • The mating cycle life of the DF07M30 is 500 cycles minimum.
