DF11-24DP-2V(57) footprint, schematic symbol and 3D model by Hirose

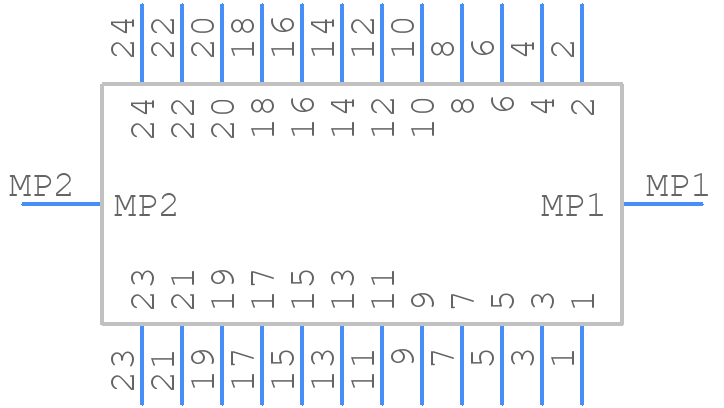

Symbol

click to zoom

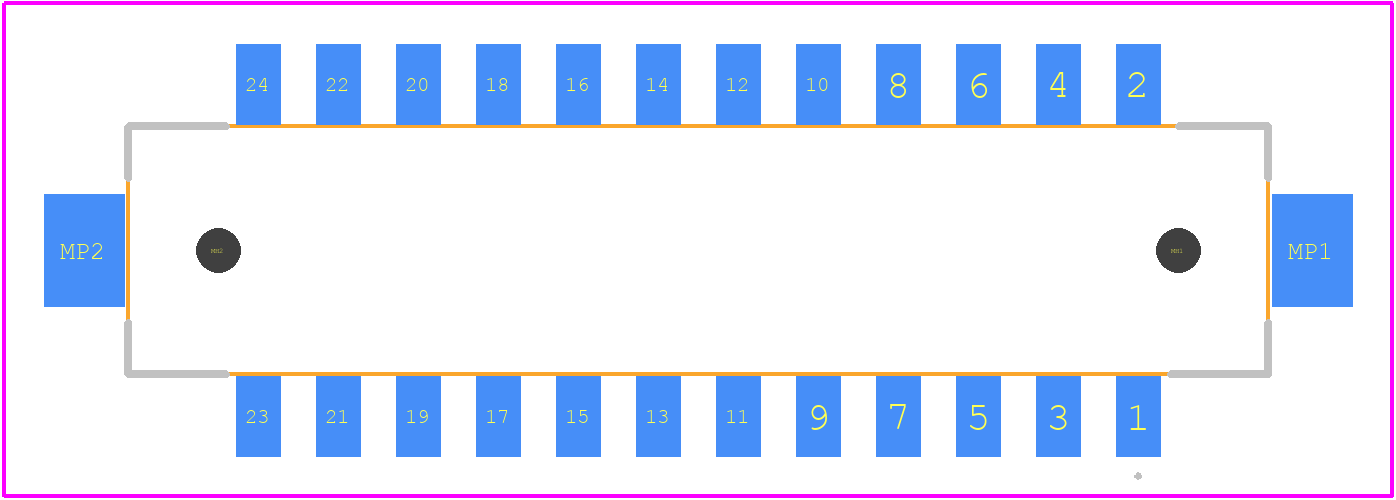

PCB Footprints

DF11-24DP-2V(57) - Hirose PCB footprint - Other - Other - DF11-24DP-2V(57)-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DF11-24DP-2V(57)
Part Number DF11-24DP-2V(57)
Manufacturer Hirose
Pin Count 26
Part Category Connector
Package Category Other
Footprint Name Other - DF11-24DP-2V(57)-1
Released Date Sep 21, 2023
Last Modified Date Sep 22, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

DF11-24DP-2V(57) Details

Manufacturer Part Number:
DF11-24DP-2V(57)
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Country Of Origin:
Indonesia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
0
Connector Type:
BOARD CONNECTOR

DF11-24DP-2V(57) Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m (0.36 lbf·in to 1.06 lbf·in).
Yes, the DF11-24DP-2V(57) is designed to withstand vibrations up to 10 Hz to 2000 Hz, 10 G acceleration.
The operating temperature range for the DF11-24DP-2V(57) is -40°C to 105°C (-40°F to 221°F).
Yes, the DF11-24DP-2V(57) has a moisture-resistant design and can operate in environments with up to 90% relative humidity.
The mating cycle life of the DF11-24DP-2V(57) is 500 cycles minimum.

Trust Checks

Community Provided

System Verified

Community Approved

DF11-24DP-2V(57) Overview

Use the download button to access the DF11-24DP-2V(57) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DF11-, or try a keyword search, such as Headers and Edge Type Connectors
