DF11CZ-12DS-2V(52) - Hirose

Description: Hirose DF11 Series 2mm 12 Way 2 Row Straight PCB Socket Surface Mount Board to Wire

Download DF11CZ-12DS-2V(52) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

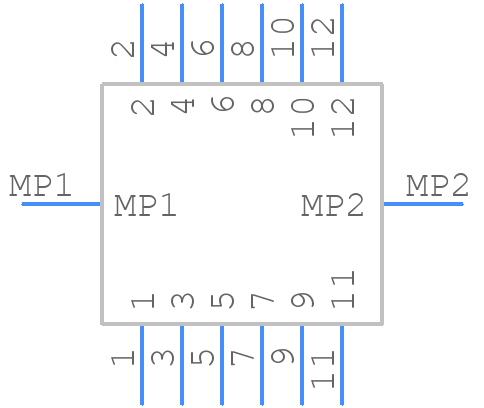

DF11CZ-12DS-2V(52) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF11CZ-12DS-2V(52) - Hirose PCB footprint - Other - Other - DF11CZ-12DS-2V(52)-2
click to zoom

DF11CZ-12DS-2V(52) Details

  • Manufacturer Part Number:

    DF11CZ-12DS-2V(52)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

DF11CZ-12DS-2V(52) Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the receptacle first, followed by the plug. This ensures proper alignment and prevents damage to the connector.
  • Yes, the DF11CZ-12DS-2V(52) connector is designed to withstand vibrations up to 10G (10-2000Hz) and is suitable for use in high-vibration applications.
  • The maximum cable size that can be used with the DF11CZ-12DS-2V(52) connector is AWG#24 to AWG#30.
  • Yes, the DF11CZ-12DS-2V(52) connector is compatible with lead-free soldering and can withstand the higher temperatures required for lead-free soldering processes.
  • The operating temperature range for the DF11CZ-12DS-2V(52) connector is -40°C to +105°C.
