DF11CZ-30DS-2V(52) - Hirose

Description: 30 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold, 2A, 250V, -30°C ~ 85°C

Download DF11CZ-30DS-2V(52) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

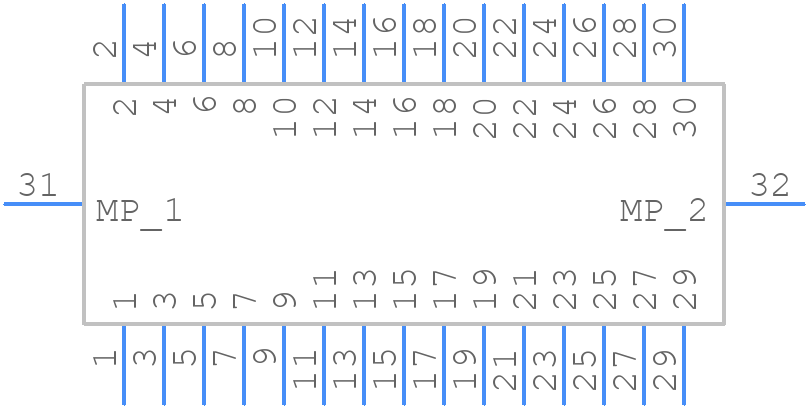

Symbol
DF11CZ-30DS-2V(52) - Hirose - PCB symbol
click to zoom

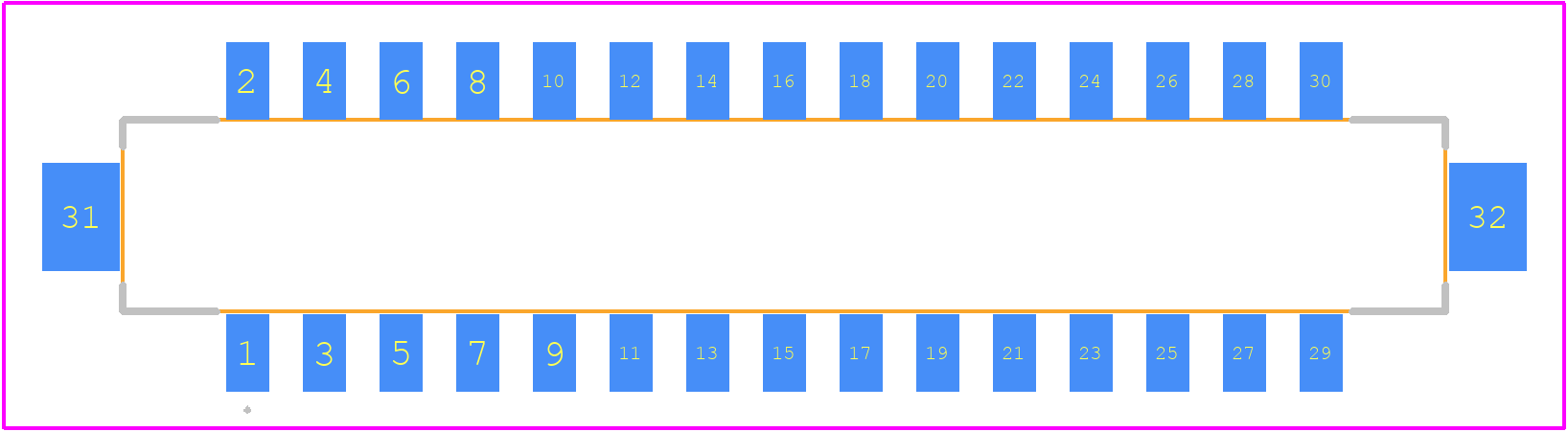

PCB Footprints
DF11CZ-30DS-2V(52) - Hirose PCB footprint - Other - Other - DF11CZ-30DS-2V(52)-1
click to zoom

DF11CZ-30DS-2V(52) Details

  • Manufacturer Part Number:

    DF11CZ-30DS-2V(52)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

DF11CZ-30DS-2V(52) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in) according to Hirose's application notes.
  • Yes, the DF11CZ-30DS-2V(52) is designed to withstand vibrations up to 10 G (98 m/s²) in the frequency range of 10 Hz to 2 kHz, making it suitable for high-vibration applications.
  • The mating cycle life of the DF11CZ-30DS-2V(52) is 500 cycles minimum, according to Hirose's reliability testing.
  • Yes, the DF11CZ-30DS-2V(52) is designed for automated assembly and can be used with standard pick-and-place machines and reflow soldering processes.
  • The operating temperature range of the DF11CZ-30DS-2V(52) is -40°C to 105°C (-40°F to 221°F), making it suitable for a wide range of applications.
