DF11GZ-24DP-2V(20) footprint, schematic symbol and 3D model by Hirose

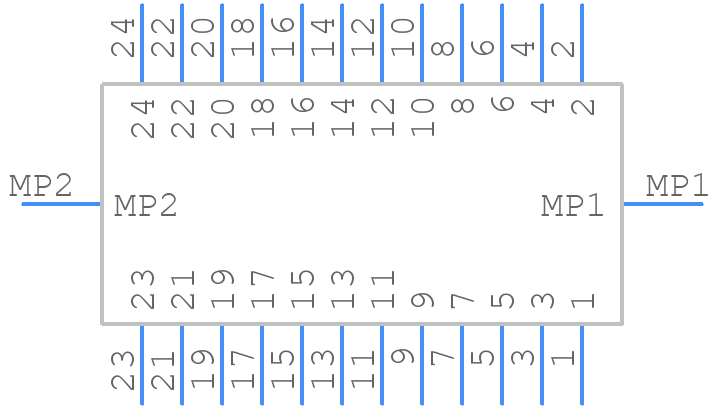

Symbol

click to zoom

PCB Footprints

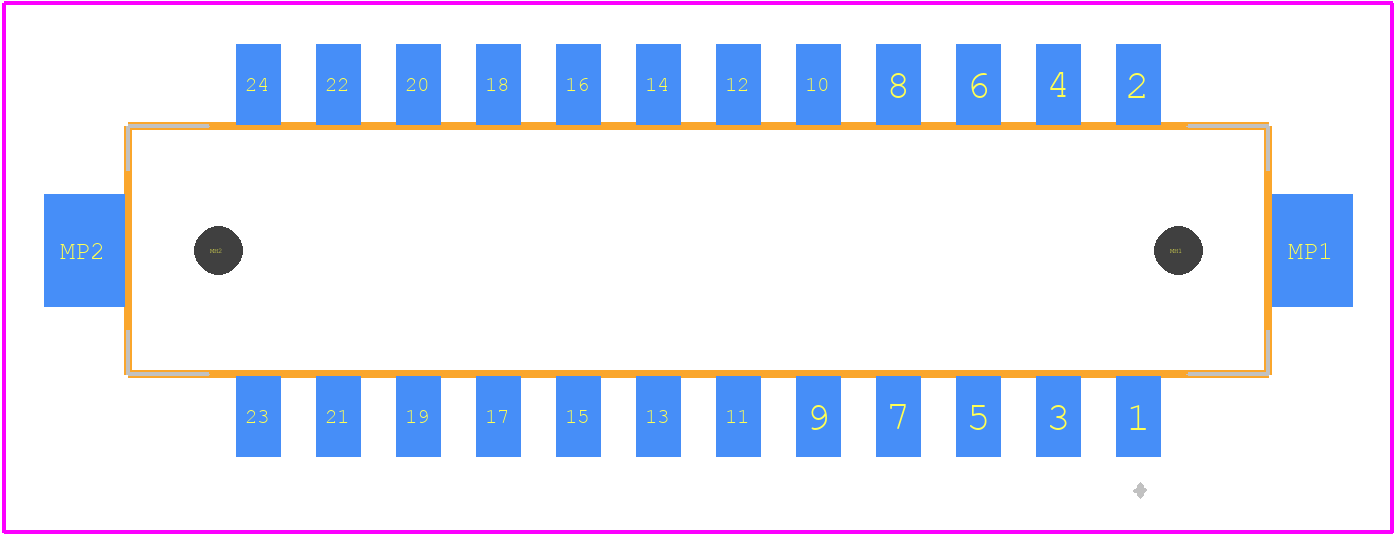

DF11GZ-24DP-2V(20) - Hirose PCB footprint - Other - Other - DF11GZ-24DP-2V(20)-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DF11GZ-24DP-2V(20)
Part Number DF11GZ-24DP-2V(20)
Manufacturer Hirose
Pin Count 26
Part Category Connector
Package Category Other
Footprint Name Other - DF11GZ-24DP-2V(20)-1
Released Date Oct 19, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DF11GZ-24DP-2V(20) Details

Manufacturer Part Number:
DF11GZ-24DP-2V(20)
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Country Of Origin:
Indonesia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
24 Weeks
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
0
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Tin (Sn)
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
2 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
24
UL Flammability Code:
94V-0

DF11GZ-24DP-2V(20) Frequently Asked Questions (FAQs)

The recommended torque is 0.5 N·m to 1.5 N·m (5 to 15 lbf·in) for the screws on the DF11GZ-24DP-2V(20) connector.
Yes, the DF11GZ-24DP-2V(20) connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and screw torque.
The maximum operating temperature for the DF11GZ-24DP-2V(20) connector is 125°C (257°F).
The DF11GZ-24DP-2V(20) connector has a moisture-resistant design, but it's not fully waterproof. It can be used in humid environments, but it's not recommended for use in wet or submerged applications.
The mating cycle life of the DF11GZ-24DP-2V(20) connector is 500 cycles minimum.

Trust Checks

Expert Contribution

System Verified

Community Approved

DF11GZ-24DP-2V(20) Overview

Use the download button to access the DF11GZ-24DP-2V(20) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DF11G, or try a keyword search, such as Headers and Edge Type Connectors
