DF12(3.0)-32DP-0.5V(86) - Hirose

Description: HIROSE(HRS) - DF12(3.0)-32DP-0.5V(86) - Stacking Board Connector, DF12 Series, Header, 0.5 mm, 32, Surface Mount, Gold Plated Contacts

Download DF12(3.0)-32DP-0.5V(86) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

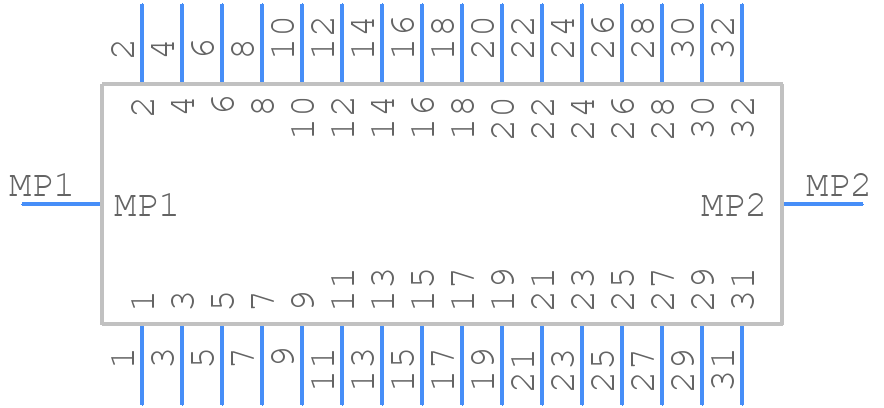

DF12(3.0)-32DP-0.5V(86) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF12(3.0)-32DP-0.5V(86) - Hirose PCB footprint - Other - Other - DF12(3.0)-32DP-0.5V(86)-1
click to zoom
3D Models
DF12(3.0)-32DP-0.5V(86) - Hirose - 3D model - Other - DF12(3.0)-32DP-0.5V(86)-1
click to zoom

DF12(3.0)-32DP-0.5V(86) Details

  • Manufacturer Part Number:

    DF12(3.0)-32DP-0.5V(86)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    32

  • UL Flammability Code:

    94V-0

DF12(3.0)-32DP-0.5V(86) Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to insert the plug into the receptacle at a slight angle, then rotate it to ensure proper engagement of the contacts.
  • To ensure reliable connections, make sure to clean the contacts before mating, apply a suitable contact lubricant, and avoid over-tightening or over-mating the connector.
  • The maximum operating temperature for this connector is 85°C, as specified in the datasheet. Exceeding this temperature may affect the connector's performance and reliability.
  • Yes, the DF12(3.0)-32DP-0.5V(86) connector is designed to withstand vibrations and shocks, but it's essential to follow the recommended mounting and fastening procedures to ensure reliable connections.
  • The connector has a polarized design to prevent mis-mating. Ensure that the plug and receptacle are properly aligned and mated according to the manufacturer's instructions to prevent damage or electrical shorts.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF12(3.0)-32DP-0.5V(86) Overview

Use the download button to access the DF12(3.0)-32DP-0.5V(86) schematic symbol, PCB footprint, and 3D model.
