DF12(3.0)-36DP-0.5V(86) - Hirose

Description: Conn Board to Board HDR 36 POS 0.5mm Solder ST SMD T/R

Download DF12(3.0)-36DP-0.5V(86) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

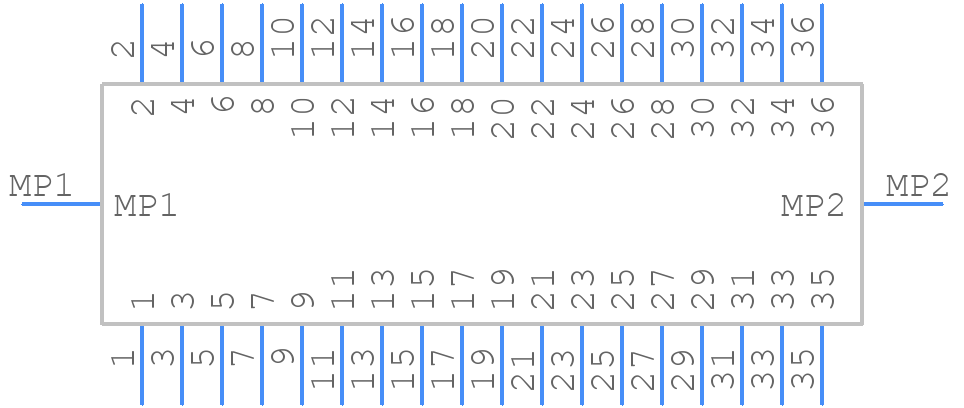

DF12(3.0)-36DP-0.5V(86) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF12(3.0)-36DP-0.5V(86) - Hirose PCB footprint - Other - Other - DF12(3.0)-36DP-0.5V(86)-2
click to zoom
3D Models
DF12(3.0)-36DP-0.5V(86) - Hirose - 3D model - Other - DF12(3.0)-36DP-0.5V(86)-2
click to zoom

DF12(3.0)-36DP-0.5V(86) Details

  • Manufacturer Part Number:

    DF12(3.0)-36DP-0.5V(86)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    36

  • UL Flammability Code:

    94V-0

DF12(3.0)-36DP-0.5V(86) Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the DF12(3.0)-36DP-0.5V(86) connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • To ensure reliable connections with the DF12(3.0)-36DP-0.5V(86) connector, make sure to follow proper termination and assembly procedures, and use the recommended torque values for the screws. Additionally, ensure that the connector is properly seated and mated to prevent vibration and shock damage.
  • The maximum operating temperature for the DF12(3.0)-36DP-0.5V(86) connector is 125°C, as specified in the datasheet. However, it's recommended to derate the operating temperature based on the specific application and environmental conditions.
  • Yes, the DF12(3.0)-36DP-0.5V(86) connector is designed to withstand vibrations and shocks. However, it's recommended to follow proper mounting and assembly procedures to ensure reliable connections in high-vibration environments.
  • The recommended cleaning procedure for the DF12(3.0)-36DP-0.5V(86) connector is to use a soft brush and a mild detergent solution to remove any debris or contaminants. Avoid using harsh chemicals or abrasive materials that may damage the connector.
