DF12(3.5)-36DP-0.5V(86) - Hirose

Description: Board to Board & Mezzanine Connectors 36P V SMT DR HDR 3.5MM STACK HT GOLD

Download DF12(3.5)-36DP-0.5V(86) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

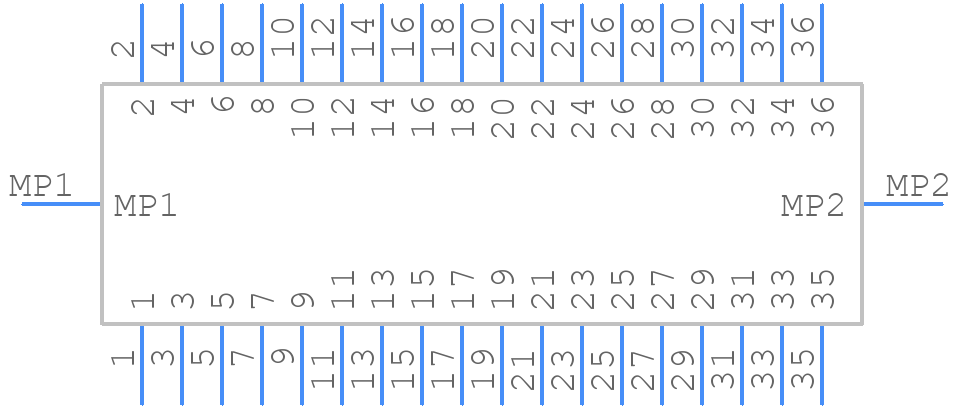

DF12(3.5)-36DP-0.5V(86) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF12(3.5)-36DP-0.5V(86) - Hirose PCB footprint - Other - Other - DF12(3.5)-36DP-0.5V(86)-1
click to zoom
3D Models
DF12(3.5)-36DP-0.5V(86) - Hirose - 3D model - Other - DF12(3.5)-36DP-0.5V(86)-1
click to zoom

DF12(3.5)-36DP-0.5V(86) Details

  • Manufacturer Part Number:

    DF12(3.5)-36DP-0.5V(86)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    36

  • UL Flammability Code:

    94V-0

DF12(3.5)-36DP-0.5V(86) Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the DF12(3.5)-36DP-0.5V(86) connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the DF12(3.5)-36DP-0.5V(86) connector is designed to withstand high-vibration environments. It has a robust design and secure locking mechanism that ensures reliable connections even in harsh conditions.
  • The maximum operating temperature for the DF12(3.5)-36DP-0.5V(86) connector is 125°C. However, it's recommended to derate the current carrying capacity at higher temperatures to ensure reliable operation.
  • The DF12(3.5)-36DP-0.5V(86) connector has a moisture-resistant design, but it's not fully waterproof. It's recommended to use additional sealing or protection measures if the connector will be exposed to high humidity or water.
  • The recommended torque for the screw locks on the DF12(3.5)-36DP-0.5V(86) connector is 0.5 N·m to 1.5 N·m. Over-tightening can damage the connector, so it's essential to follow the recommended torque specification.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF12(3.5)-36DP-0.5V(86) Overview

Use the download button to access the DF12(3.5)-36DP-0.5V(86) schematic symbol, PCB footprint, and 3D model.
