DF12B(3.5)-40DP-0.5V(86) - Hirose

Description: Hirose DF12 Series, 0.5mm Pitch 40 Way 2 Row Straight PCB Header, Solder Termination, 0.3A

Download DF12B(3.5)-40DP-0.5V(86) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

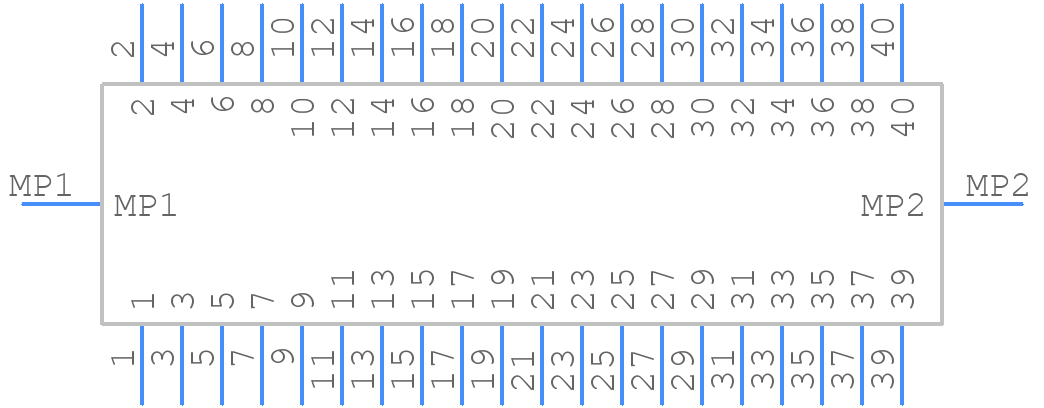

DF12B(3.5)-40DP-0.5V(86) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF12B(3.5)-40DP-0.5V(86) - Hirose PCB footprint - Other - Other - DF12B(3.5)-40DP-0.5V(86)-2
click to zoom
3D Models
DF12B(3.5)-40DP-0.5V(86) - Hirose - 3D model - Other - DF12B(3.5)-40DP-0.5V(86)-2
click to zoom

DF12B(3.5)-40DP-0.5V(86) Details

  • Manufacturer Part Number:

    DF12B(3.5)-40DP-0.5V(86)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

DF12B(3.5)-40DP-0.5V(86) Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the DF12B(3.5)-40DP-0.5V(86) connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the DF12B(3.5)-40DP-0.5V(86) connector is designed to withstand high-vibration environments. It has a robust design and secure locking mechanism to ensure reliable connections even in harsh conditions.
  • The maximum operating temperature for the DF12B(3.5)-40DP-0.5V(86) connector is 125°C. However, it's recommended to derate the current carrying capacity at higher temperatures to ensure reliable operation.
  • The DF12B(3.5)-40DP-0.5V(86) connector has a moisture-resistant design, but it's not fully waterproof. It's recommended to use additional sealing or protection measures if the connector will be exposed to high humidity or water.
  • The recommended torque for the screw locks on the DF12B(3.5)-40DP-0.5V(86) connector is 0.5 N·m to 1.5 N·m. Over-tightening can damage the connector, so it's essential to follow the recommended torque specification.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF12B(3.5)-40DP-0.5V(86) Overview

Use the download button to access the DF12B(3.5)-40DP-0.5V(86) schematic symbol, PCB footprint, and 3D model.
