DF12NB-20DS-0.5V(51) - Hirose

Description: 20 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

Download DF12NB-20DS-0.5V(51) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

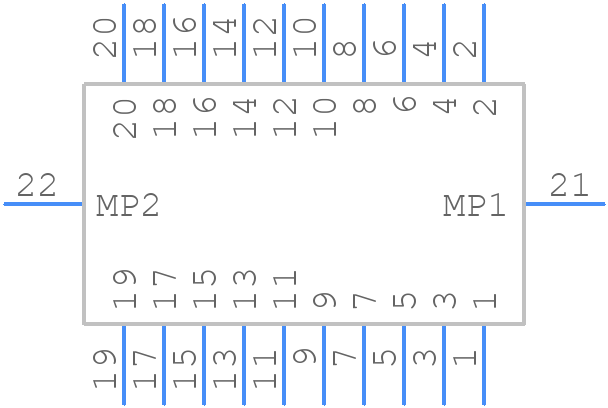

DF12NB-20DS-0.5V(51) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF12NB-20DS-0.5V(51) - Hirose PCB footprint - Other - Other - DF12NB-20DS-0.5V(51)-3
click to zoom
3D Models
DF12NB-20DS-0.5V(51) - Hirose - 3D model - Other - DF12NB-20DS-0.5V(51)-3
click to zoom

DF12NB-20DS-0.5V(51) Details

  • Manufacturer Part Number:

    DF12NB-20DS-0.5V(51)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8.68

  • Connector Type:

    BOARD STACKING CONNECTOR

DF12NB-20DS-0.5V(51) Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 N·m to 1.5 N·m (5 to 15 lbf·in) for the screws on the DF12NB-20DS-0.5V(51) connector.
  • Yes, the DF12NB-20DS-0.5V(51) connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and screw torque.
  • The maximum operating temperature for the DF12NB-20DS-0.5V(51) connector is 125°C (257°F).
  • Yes, the DF12NB-20DS-0.5V(51) connector is compatible with lead-free soldering. However, it's recommended to follow the manufacturer's guidelines for soldering temperature and time to ensure reliable connections.
  • The DF12NB-20DS-0.5V(51) connector is not designed for use in humid or wet environments. It's recommended to use a connector with a higher IP rating or to take additional measures to protect the connector from moisture.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF12NB-20DS-0.5V(51) Overview

Use the download button to access the DF12NB-20DS-0.5V(51) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF12N, or try a keyword search, such as Headers and Edge Type Connectors
