The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in).
Yes, the DF13EA-10DP-1.25V(76) is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and screw locking.
The DF13EA-10DP-1.25V(76) has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to use additional protection measures, such as conformal coating or potting, for extended outdoor use.
The operating temperature range for the DF13EA-10DP-1.25V(76) is -40°C to 105°C (-40°F to 221°F).
It's not recommended to use the DF13EA-10DP-1.25V(76) with a mating connector from a different manufacturer, as compatibility and performance cannot be guaranteed. It's recommended to use mating connectors from Hirose Electric Co Ltd to ensure proper mating and performance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DF13EA-10DP-1.25V(76) Overview

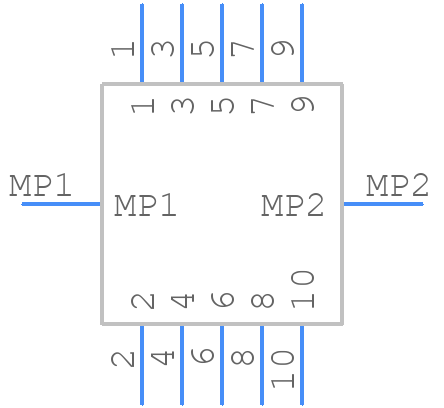

Use the download button to access the DF13EA-10DP-1.25V(76) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF13E,
or try a keyword search, such as Headers and Edge Type Connectors
