DF13EA-20DP-1.25V(21) - Hirose

Description: Headers & Wire Housings 1.25 DR SRT PIN HDR 20P TIN COPPR WOBOSS

Download DF13EA-20DP-1.25V(21) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

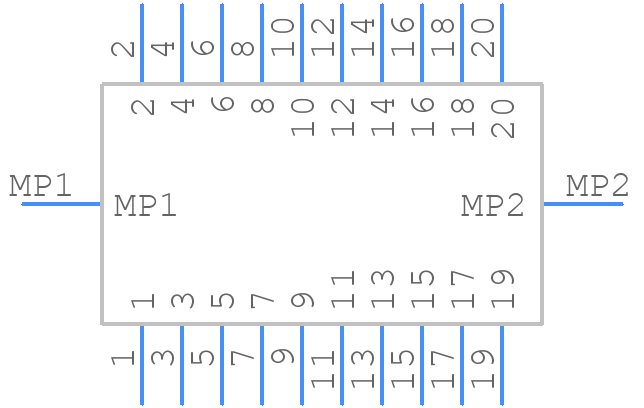

DF13EA-20DP-1.25V(21) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF13EA-20DP-1.25V(21) - Hirose PCB footprint - Other - Other - DF13EA-20DP-1.25V(21)-1
click to zoom
3D Models
DF13EA-20DP-1.25V(21) - Hirose - 3D model - Other - DF13EA-20DP-1.25V(21)-1
click to zoom

DF13EA-20DP-1.25V(21) Details

  • Manufacturer Part Number:

    DF13EA-20DP-1.25V(21)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Copper (Sn/Cu)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e2

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20
