DF13EA-20DP-1.25V(51) - Hirose

Description: Headers & Wire Housings 1.25 DR SRT PIN HDR 20P SMT GLD W/O BOSS

Download DF13EA-20DP-1.25V(51) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

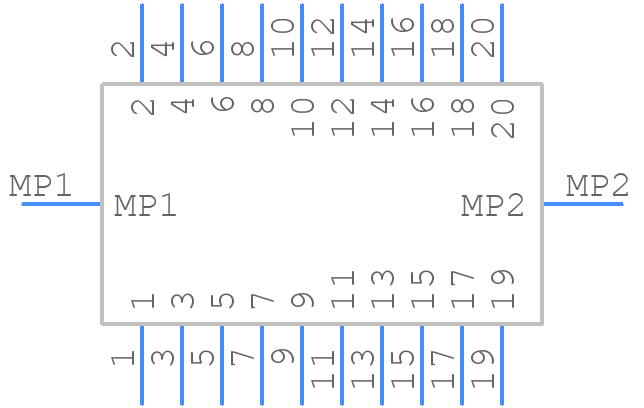

DF13EA-20DP-1.25V(51) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF13EA-20DP-1.25V(51) - Hirose PCB footprint - Other - Other - DF13EA-20DP-1.25V(51)-1
click to zoom
3D Models
DF13EA-20DP-1.25V(51) - Hirose - 3D model - Other - DF13EA-20DP-1.25V(51)-1
click to zoom

DF13EA-20DP-1.25V(51) Details

  • Manufacturer Part Number:

    DF13EA-20DP-1.25V(51)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Body Breadth:

    0.217 inch

  • Body Depth:

    0.189 inch

  • Body Length:

    0.722 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Arrangement:

    S20P0

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BEIGE

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.049 inch

  • Mating Contact Row Spacing:

    0.049 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    6 mm

  • Plating Thickness:

    7.87u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

DF13EA-20DP-1.25V(51) Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the DF13EA-20DP-1.25V(51) connector is 20-30 cycles. However, it's essential to consult with Hirose Electric Co Ltd or an authorized distributor for specific guidance on the mating cycle, as it may vary depending on the application and environmental conditions.
  • While the DF13EA-20DP-1.25V(51) connector is designed to be reliable, it's crucial to assess the specific vibration requirements of your application. Hirose Electric Co Ltd recommends consulting their vibration testing standards and guidelines to ensure the connector meets your application's vibration requirements.
  • The maximum operating temperature for the DF13EA-20DP-1.25V(51) connector is 105°C. However, it's essential to note that the operating temperature may affect the connector's performance and lifespan. Consult Hirose Electric Co Ltd or an authorized distributor for specific guidance on temperature-related considerations.
  • The DF13EA-20DP-1.25V(51) connector is designed to be reliable in various environments, but it's crucial to assess the specific environmental requirements of your application. Hirose Electric Co Ltd recommends consulting their environmental testing standards and guidelines to ensure the connector meets your application's environmental requirements.
  • The recommended torque for the screw locks of the DF13EA-20DP-1.25V(51) connector is 0.5-1.5 N·m. However, it's essential to consult Hirose Electric Co Ltd or an authorized distributor for specific guidance on torque requirements, as it may vary depending on the application and environmental conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF13EA-20DP-1.25V(51) Overview

Use the download button to access the DF13EA-20DP-1.25V(51) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF13E, or try a keyword search, such as Headers and Edge Type Connectors
