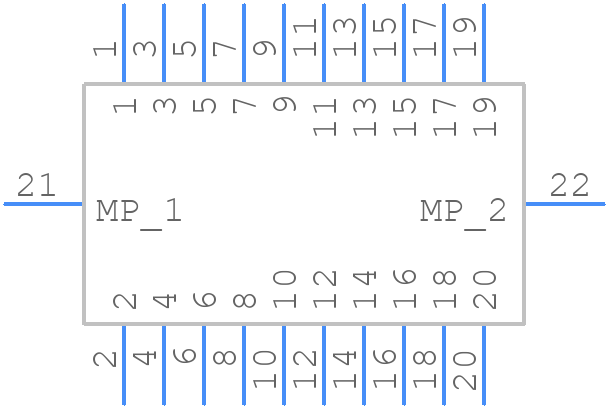

DF13EA-20DP-1.25V(52) - Hirose

DF13EA-20DP-1.25V(52) Details

• Manufacturer Part Number:

  DF13EA-20DP-1.25V(52)

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Hirose Electric Co Ltd

• YTEOL:

  8.3

• Board Mounting Option:

  FITTING NAIL

• Body Breadth:

  0.217 inch

• Body Depth:

  0.189 inch

• Body Length:

  0.722 inch

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Termination:

  GOLD

• Contact Gender:

  MALE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  30 mΩ

• Contact Style:

  SQ PIN-SKT

• Dielectric Withstanding Voltage:

  500VAC V

• Durability:

  50 Cycles

• Filter Feature:

  NO

• Insulation Resistance:

  500000000 Ω

• Insulator Color:

  BEIGE

• Insulator Material:

  POLYAMIDE

• JESD-609 Code:

  e4

• Mating Contact Pitch:

  0.049 inch

• Mating Contact Row Spacing:

  0.049 inch

• Mating Information:

  MULTIPAL MATING PARTS AVAILBLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  FRICTION LOCK

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -35 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  5.3 mm

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  1 A

• Reference Standard:

  UL

• Terminal Pitch:

  1.25 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  20

• UL Flammability Code:

  94V-0
