DF13EA-20DP-1.25V(76) - Hirose

Description: Hirose DF13, 1.25mm Pitch, 20 Way, 1 Row, Straight PCB Header, Surface Mount

Download DF13EA-20DP-1.25V(76) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

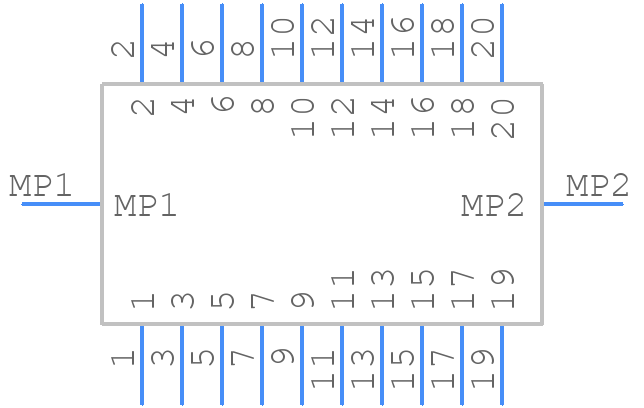

Symbol
DF13EA-20DP-1.25V(76) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF13EA-20DP-1.25V(76) - Hirose PCB footprint - Other - Other - DF13EA-20DP-1.25V(76)-2
click to zoom
3D Models
DF13EA-20DP-1.25V(76) - Hirose - 3D model - Other - DF13EA-20DP-1.25V(76)-2
click to zoom

DF13EA-20DP-1.25V(76) Details

  • Manufacturer Part Number:

    DF13EA-20DP-1.25V(76)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

DF13EA-20DP-1.25V(76) Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the DF13EA-20DP-1.25V(76) connector is 20-30 cycles. However, it's essential to consult with Hirose Electric Co Ltd or a qualified engineer to determine the suitable mating cycle for your specific application.
  • To ensure proper polarization, align the keyway on the plug with the notch on the receptacle. The keyway and notch should fit snugly together to prevent mis-mating and ensure correct polarization.
  • The recommended torque for securing the DF13EA-20DP-1.25V(76) connector is 0.5-1.5 N·m (4.4-13.3 in-lbs). However, it's crucial to consult the datasheet or Hirose Electric Co Ltd for specific torque recommendations for your application.
  • The DF13EA-20DP-1.25V(76) connector is designed for general-purpose applications. For high-vibration or high-shock environments, consider using a connector with enhanced ruggedness, such as Hirose's DF13A series. Consult with Hirose Electric Co Ltd or a qualified engineer to determine the suitable connector for your application.
  • The operating temperature range for the DF13EA-20DP-1.25V(76) connector is -40°C to 105°C (-40°F to 221°F). However, it's essential to consult the datasheet or Hirose Electric Co Ltd for specific temperature ratings for your application.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF13EA-20DP-1.25V(76) Overview

Use the download button to access the DF13EA-20DP-1.25V(76) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF13E, or try a keyword search, such as Headers and Edge Type Connectors
