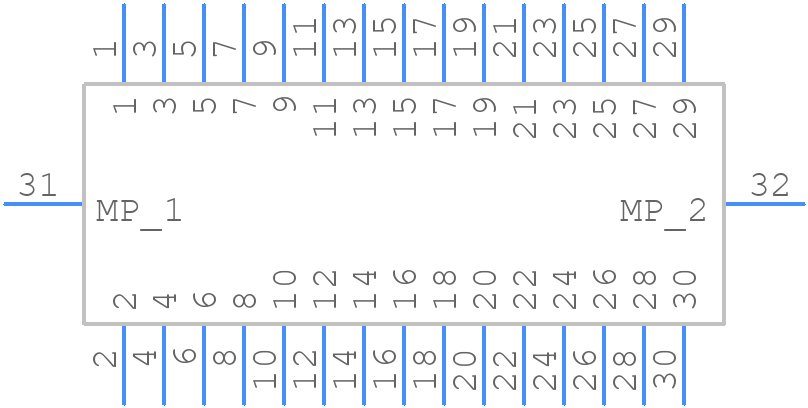

DF13EA-30DP-1.25V(51) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF13EA-30DP-1.25V(51) - Hirose PCB footprint - Other - Other - DF13EA-30DP-1.25V(51)-5
click to zoom
3D Models
DF13EA-30DP-1.25V(51) - Hirose - 3D model - Other - DF13EA-30DP-1.25V(51)-5
click to zoom

DF13EA-30DP-1.25V(51) Details

  • Manufacturer Part Number:

    DF13EA-30DP-1.25V(51)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    30

  • UL Flammability Code:

    94V-0

DF13EA-30DP-1.25V(51) Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the DF13EA-30DP-1.25V(51) connector is 20-30 cycles. However, it's essential to consult the datasheet and manufacturer's guidelines for specific application requirements.
  • While the DF13EA-30DP-1.25V(51) connector is designed to be reliable, it's not specifically designed for high-vibration environments. For such applications, it's recommended to consult with Hirose Electric Co Ltd or consider alternative connectors with vibration-resistant features.
  • The operating temperature range for the DF13EA-30DP-1.25V(51) connector is -40°C to 105°C. However, it's essential to consult the datasheet and manufacturer's guidelines for specific application requirements.
  • Yes, the DF13EA-30DP-1.25V(51) connector is compatible with lead-free soldering processes. Hirose Electric Co Ltd ensures that their connectors meet the requirements for lead-free soldering.
  • The recommended torque for the DF13EA-30DP-1.25V(51) connector is 0.5-1.5 N·m. However, it's essential to consult the datasheet and manufacturer's guidelines for specific application requirements.
