Technical Content
Part Image

DF14-20P-1.25H(54) - Hirose

Description: Headers & Wire Housings/002

Download DF14-20P-1.25H(54) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

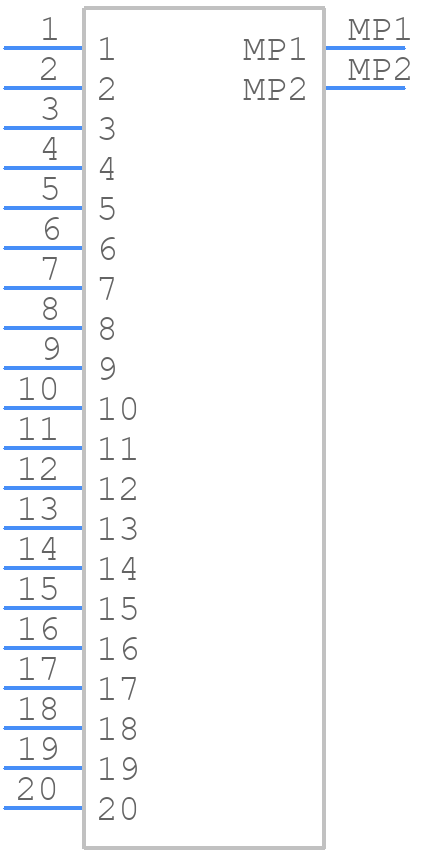

Symbol
DF14-20P-1.25H(54) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF14-20P-1.25H(54) - Hirose PCB footprint - Other - Other - DF14-20P-1.25H(54)-1
click to zoom
3D Models
DF14-20P-1.25H(54) - Hirose - 3D model - Other - DF14-20P-1.25H(54)-1
click to zoom

DF14-20P-1.25H(54) Details

  • Manufacturer Part Number:

    DF14-20P-1.25H(54)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Copper (Sn/Cu) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e2

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

DF14-20P-1.25H(54) Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 N·m to 1.5 N·m (5 to 13 in-lbs) for the screws on the DF14-20P-1.25H(54) connector.
  • Yes, the DF14-20P-1.25H(54) connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, industrial, and aerospace.
  • Yes, the DF14-20P-1.25H(54) connector is designed to operate in harsh environments, with a temperature range of -40°C to 105°C and humidity resistance of up to 95% RH.
  • The mating cycle life of the DF14-20P-1.25H(54) connector is 500 cycles minimum.
  • Yes, the DF14-20P-1.25H(54) connector is RoHS and REACH compliant, making it suitable for use in European Union markets.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF14-20P-1.25H(54) Overview

Use the download button to access the DF14-20P-1.25H(54) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF14-, or try a keyword search, such as Headers and Edge Type Connectors
