DF14-25P-1.25H(24) - Hirose

Description: Headers & Wire Housings

Download DF14-25P-1.25H(24) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

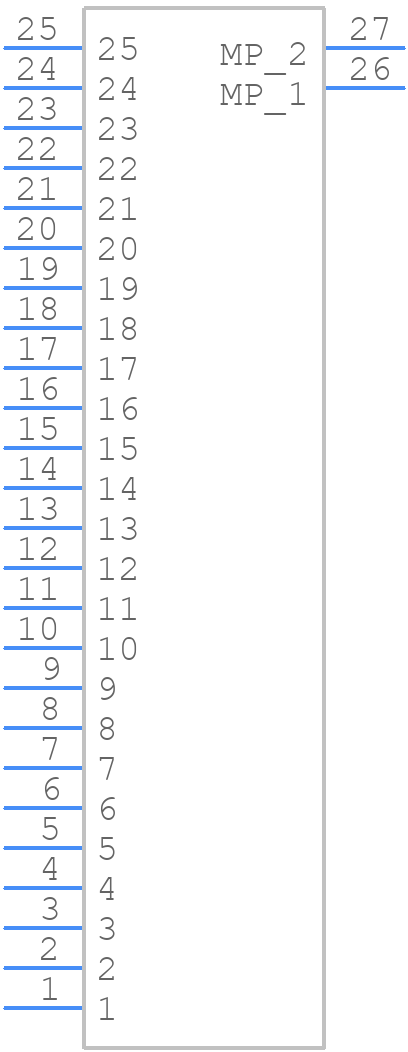

DF14-25P-1.25H(24) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF14-25P-1.25H(24) - Hirose PCB footprint - Other - Other - DF14-25P-1.25H(24)-3
click to zoom
3D Models
DF14-25P-1.25H(24) - Hirose - 3D model - Other - DF14-25P-1.25H(24)-3
click to zoom

DF14-25P-1.25H(24) Details

  • Manufacturer Part Number:

    DF14-25P-1.25H(24)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Copper (Sn/Cu) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e2

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    25

  • UL Flammability Code:

    94V-0

DF14-25P-1.25H(24) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of DF14-25P-1.25H(24) is 0.5 N·m to 1.5 N·m.
  • Yes, the DF14-25P-1.25H(24) is designed to withstand high-vibration environments, making it suitable for applications such as industrial machinery, automotive systems, and more.
  • Yes, the DF14-25P-1.25H(24) has a sealed construction that provides IP67 protection, making it suitable for use in harsh environments, including outdoor and humid conditions.
  • The maximum operating temperature range for the DF14-25P-1.25H(24) is -40°C to 105°C.
  • Yes, the DF14-25P-1.25H(24) is designed for automated assembly and can be easily integrated into high-volume production lines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF14-25P-1.25H(24) Overview

Use the download button to access the DF14-25P-1.25H(24) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF14-, or try a keyword search, such as Headers and Edge Type Connectors
