DF14A-15P-1.25H(24) - Hirose

Description: Headers & Wire Housings

Download DF14A-15P-1.25H(24) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

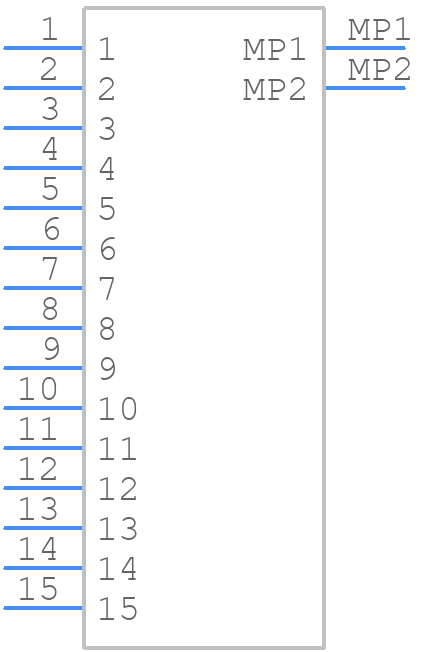

DF14A-15P-1.25H(24) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF14A-15P-1.25H(24) - Hirose PCB footprint - Other - Other - DF14A-15P-1.25H(24)-3
click to zoom
3D Models
DF14A-15P-1.25H(24) - Hirose - 3D model - Other - DF14A-15P-1.25H(24)-3
click to zoom

DF14A-15P-1.25H(24) Details

  • Manufacturer Part Number:

    DF14A-15P-1.25H(24)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Copper (Sn/Cu) - with Nickel (Ni) barrier

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e2

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF14A-15P-1.25H(24) Overview

Use the download button to access the DF14A-15P-1.25H(24) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF14A, or try a keyword search, such as Headers and Edge Type Connectors
