DF14A-20P-1.25H(24) - Hirose

Description: CONN HEADER SMD R/A 20POS 1.25MM

Download DF14A-20P-1.25H(24) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

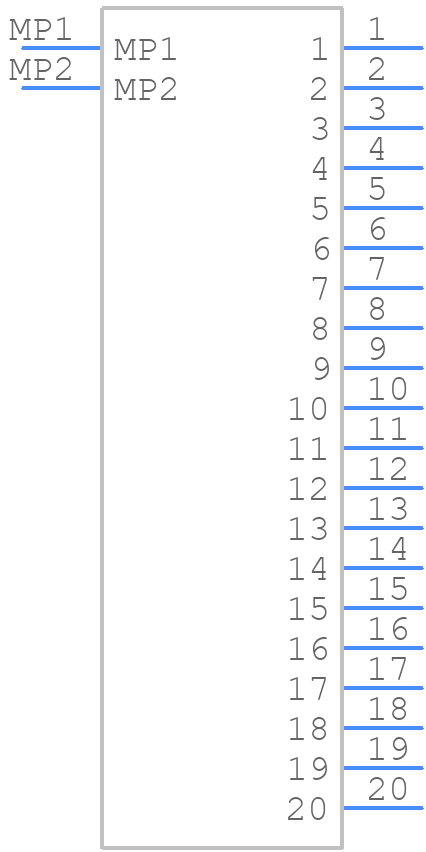

DF14A-20P-1.25H(24) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF14A-20P-1.25H(24) - Hirose PCB footprint - Other - Other - DF14A-20P-1.25H(24)-2
click to zoom
3D Models
DF14A-20P-1.25H(24) - Hirose - 3D model - Other - DF14A-20P-1.25H(24)-2
click to zoom

DF14A-20P-1.25H(24) Details

  • Manufacturer Part Number:

    DF14A-20P-1.25H(24)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Copper (Sn/Cu) - with Nickel (Ni) barrier

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e2

DF14A-20P-1.25H(24) Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 N·m to 1.5 N·m (5.5 in·lb to 13.3 in·lb) for the screws on the DF14A-20P-1.25H(24) connector.
  • Yes, the DF14A-20P-1.25H(24) connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, industrial, and aerospace.
  • Yes, the DF14A-20P-1.25H(24) connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 105°C and humidity resistance up to 95% RH.
  • The mating cycle life of the DF14A-20P-1.25H(24) connector is 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.
  • Yes, the DF14A-20P-1.25H(24) connector is designed for automated assembly and inspection systems, with features such as pick-and-place compatibility and visual inspection markers.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

DF14A-20P-1.25H(24) Overview

Use the download button to access the DF14A-20P-1.25H(24) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF14A, or try a keyword search, such as Headers and Edge Type Connectors
