DF14A-20P-1.25H(65) - Hirose

Description: Headers & Wire Housings CONN HEADER SMD R/A 20POS 1.25MM

Download DF14A-20P-1.25H(65) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

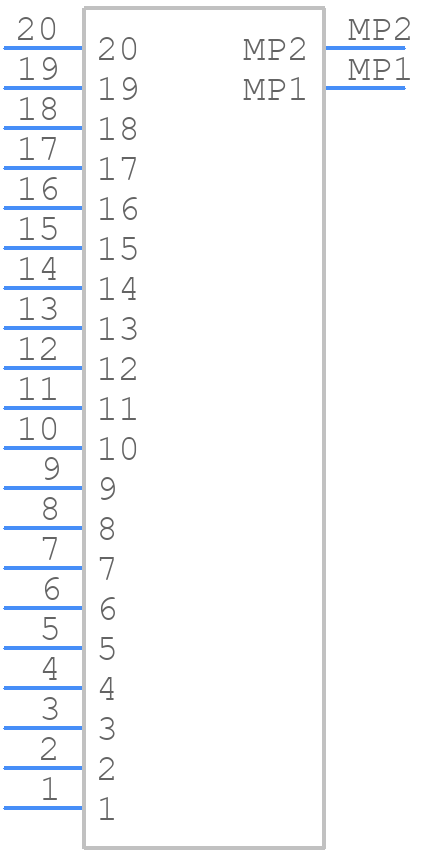

DF14A-20P-1.25H(65) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF14A-20P-1.25H(65) - Hirose PCB footprint - Other - Other - DF14A-20P-1.25H(65)
click to zoom
3D Models
DF14A-20P-1.25H(65) - Hirose - 3D model - Other - DF14A-20P-1.25H(65)
click to zoom

DF14A-20P-1.25H(65) Details

  • Manufacturer Part Number:

    DF14A-20P-1.25H(65)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8.3

  • Additional Feature:

    LOW PROFILE

  • Board Mounting Option:

    SOLDER HOLD DOWN

  • Body Breadth:

    0.098 inch

  • Body Depth:

    0.264 inch

  • Body Length:

    1.18 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    50 Cycles

  • Filter Feature:

    NO

  • Insertion Force-Max:

    3 N

  • Insulation Resistance:

    500000000 Ω

  • Insulator Color:

    BEIGE

  • Insulator Material:

    POLYAMIDE

  • Mating Contact Pitch:

    0.049 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    4u inch

  • Polarization Key:

    POLARIZATION NOTCH

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    0.15 N

DF14A-20P-1.25H(65) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the DF14A-20P-1.25H(65) connector is designed to withstand vibrations. Hirose Electric Co Ltd has tested this connector to meet the IEC 60512-6-2 standard for vibration resistance. However, it's still important to evaluate the connector's performance in your specific application and consider additional measures to ensure reliability.
  • The maximum operating temperature for the DF14A-20P-1.25H(65) connector is 125°C (257°F). It's essential to ensure that the connector does not exceed this temperature to maintain its electrical and mechanical performance.
  • The DF14A-20P-1.25H(65) connector has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's not designed for exposure to harsh chemicals. If you need to use the connector in a chemically harsh environment, you should consult with Hirose Electric Co Ltd or a qualified engineer to determine the connector's suitability.
  • The DF14A-20P-1.25H(65) connector is designed for signal transmission up to 1.25 Gbps. While it can support high-speed signals, it's essential to evaluate the connector's performance in your specific application and consider factors such as signal integrity, impedance, and crosstalk.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF14A-20P-1.25H(65) Overview

Use the download button to access the DF14A-20P-1.25H(65) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF14A, or try a keyword search, such as Headers and Edge Type Connectors
