DF14H-20P-1.25H(56) footprint, schematic symbol and 3D model by Hirose

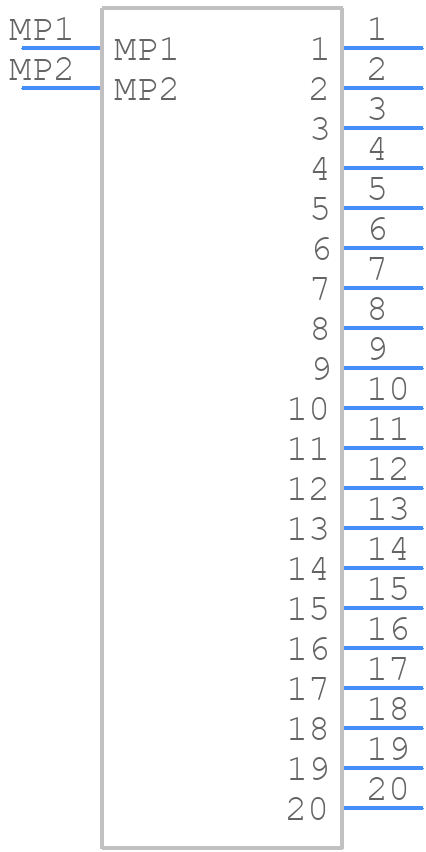

Symbol

click to zoom

PCB Footprints

DF14H-20P-1.25H(56) - Hirose PCB footprint - Other - Other - DF14H-20P-1.25H(56)-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DF14H-20P-1.25H(56)
Part Number DF14H-20P-1.25H(56)
Manufacturer Hirose
Pin Count 22
Part Category Connector
Package Category Other
Footprint Name Other - DF14H-20P-1.25H(56)-2
Released Date Apr 19, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DF14H-20P-1.25H(56) Details

Manufacturer Part Number:
DF14H-20P-1.25H(56)
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
0
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Gold (Au)
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
1
Option:
GENERAL PURPOSE
Terminal Pitch:
1.25 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
20
UL Flammability Code:
94V-0

DF14H-20P-1.25H(56) Frequently Asked Questions (FAQs)

The recommended torque value is 0.5 N·m to 1.5 N·m (5.5 in·lb to 13.3 in·lb) for the screws on the DF14H-20P-1.25H(56) connector.
Yes, the DF14H-20P-1.25H(56) connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, industrial, and aerospace.
Yes, the DF14H-20P-1.25H(56) connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 105°C and humidity resistance up to 95% RH.
The mating cycle life of the DF14H-20P-1.25H(56) connector is 500 cycles, making it suitable for applications that require frequent mating and unmating.
Yes, the DF14H-20P-1.25H(56) connector is designed for automated assembly and inspection systems, with features such as pick-and-place compatibility and visual inspection markers.

Trust Checks

Community Provided

System Verified

Community Approved

DF14H-20P-1.25H(56) Overview

Use the download button to access the DF14H-20P-1.25H(56) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DF14H, or try a keyword search, such as Headers and Edge Type Connectors
