DF14H-30P-1.25H(56) footprint, schematic symbol and 3D model by Hirose

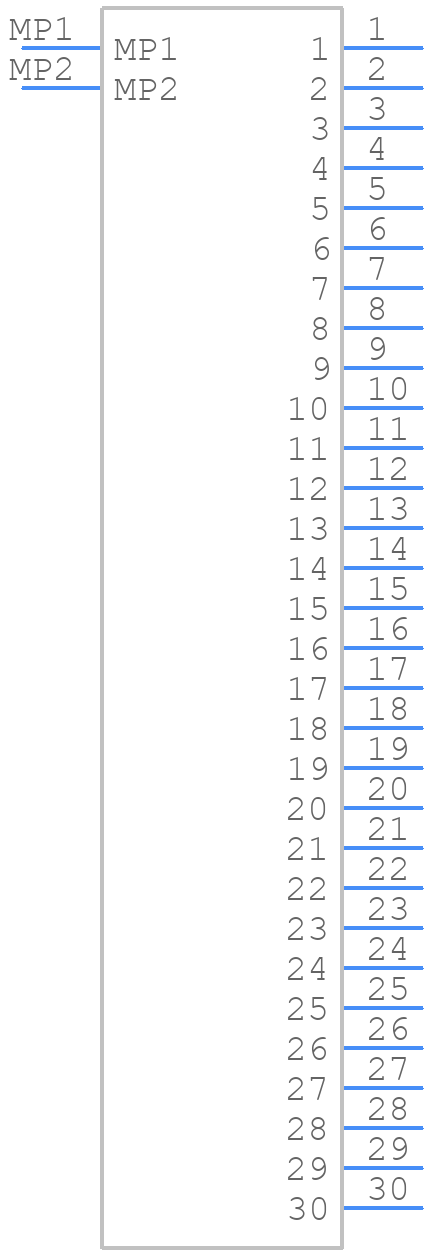

Symbol

click to zoom

PCB Footprints

DF14H-30P-1.25H(56) - Hirose PCB footprint - Other - Other - DF14H-30P-1.25H(56)-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DF14H-30P-1.25H(56)
Part Number DF14H-30P-1.25H(56)
Manufacturer Hirose
Pin Count 32
Part Category Connector
Package Category Other
Footprint Name Other - DF14H-30P-1.25H(56)-1
Released Date Apr 2, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DF14H-30P-1.25H(56) Details

Manufacturer Part Number:
DF14H-30P-1.25H(56)
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
0
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Gold (Au)
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
1
Option:
GENERAL PURPOSE
Terminal Pitch:
1.25 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
30
UL Flammability Code:
94V-0

DF14H-30P-1.25H(56) Frequently Asked Questions (FAQs)

The recommended torque value is 0.5 N·m to 1.5 N·m, but it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific guidance.
Yes, the DF14H-30P-1.25H(56) connector is designed to withstand vibrations and is suitable for use in high-vibration applications, but it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific guidance.
The operating temperature range for the DF14H-30P-1.25H(56) connector is -40°C to 105°C, but it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific guidance.
Yes, the DF14H-30P-1.25H(56) connector is compatible with lead-free soldering, but it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific guidance on soldering conditions.
The mating cycle life of the DF14H-30P-1.25H(56) connector is 500 cycles, but it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific guidance.
