Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and keeping sensitive analog signals away from digital signals.
To ensure reliable operation, it's crucial to follow the recommended operating conditions, including temperature, voltage, and current. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a stable temperature.
Operating the DF1704EG4 outside the recommended input voltage range may affect its performance, power consumption, and reliability. Lower input voltages may reduce the output current capability, while higher input voltages may increase power consumption and heat generation.
To minimize EMI and RFI, use proper shielding, grounding, and filtering techniques. Place the DF1704EG4 away from noise sources, use a metal shield around the device, and add EMI filters or ferrite beads to the input and output lines.
The DF1704EG4 has a maximum junction temperature of 150°C. Ensure good thermal conductivity between the device and the PCB, and consider using thermal interfaces or heat sinks to maintain a safe operating temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DF1704EG4 Overview

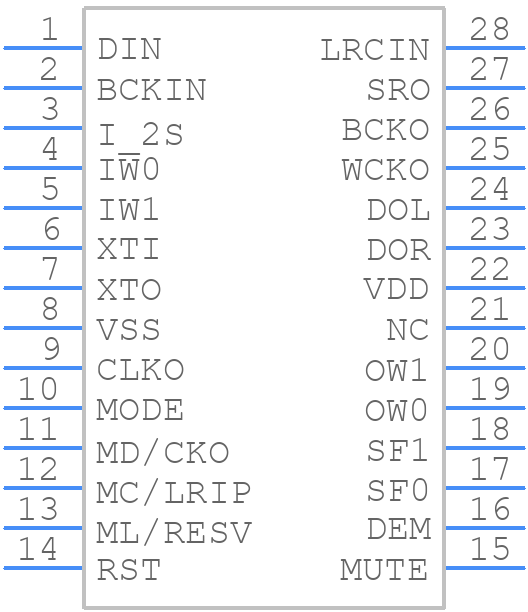

Use the download button to access the DF1704EG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF170,
or try a keyword search, such as DSP Peripherals
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
