The recommended mating sequence is to insert the plug into the receptacle at a slight angle, then rotate it to the mating position. This helps to prevent damage to the contacts.
To ensure reliable connections, make sure the connector is properly mated, the contacts are clean and free of debris, and the connector is not subjected to excessive vibration or mechanical stress.
The maximum operating temperature for the DF19G-14P-1H(54) connector is 125°C, according to the datasheet.
While the DF19G-14P-1H(54) connector is designed to be rugged, it's not recommended for high-vibration applications. If vibration is a concern, consider using a connector with additional locking mechanisms or consult with Hirose Electric Co Ltd for a custom solution.
Handle the connector by the plastic body, avoiding touching the contacts or pins. Use a soft, dry cloth to wipe away any debris or oils from your skin. Avoid bending or flexing the connector during assembly.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DF19G-14P-1H(54) Overview

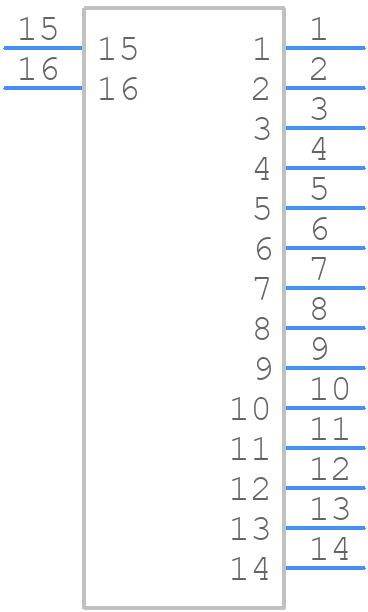

Use the download button to access the DF19G-14P-1H(54) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DF19G,
or try a keyword search, such as Headers and Edge Type Connectors
Suggested Parts
If you searched for DF19G-14P-1H(54), you might also be interested in these parts:
