DF19L-14P-1H(52) footprint, schematic symbol and 3D model by Hirose

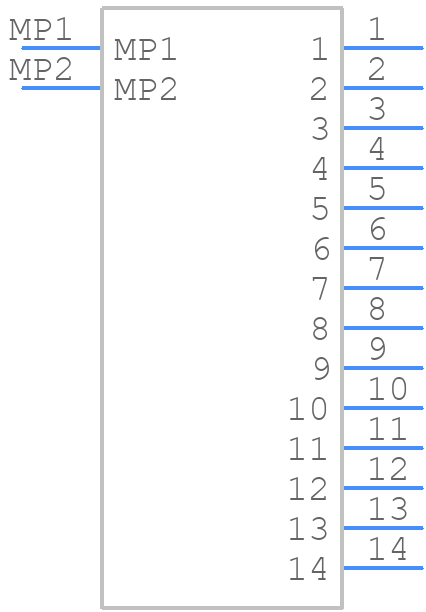

Symbol

click to zoom

PCB Footprints

DF19L-14P-1H(52) - Hirose PCB footprint - Other - Other - DF19L-14P-1H(52)-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DF19L-14P-1H(52)
Part Number DF19L-14P-1H(52)
Manufacturer Hirose
Pin Count 16
Part Category Connector
Package Category Other
Footprint Name Other - DF19L-14P-1H(52)-2
Released Date Mar 13, 2024
Last Modified Date Mar 13, 2024 7:24 AM UTC
Pinout / Pin List Click Here (Member Only)

DF19L-14P-1H(52) Details

Manufacturer Part Number:
DF19L-14P-1H(52)
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
12 Weeks
Manufacturer:
Hirose Electric Co Ltd
Connector Type:
BOARD CONNECTOR

DF19L-14P-1H(52) Frequently Asked Questions (FAQs)

The recommended mating sequence is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Yes, the DF19L-14P-1H(52) connector is designed to withstand vibrations up to 10G (10-2000Hz) and is suitable for use in high-vibration applications.
The maximum operating temperature range for the DF19L-14P-1H(52) connector is -40°C to +105°C.
Yes, the DF19L-14P-1H(52) connector is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
The recommended torque value for the DF19L-14P-1H(52) connector's screw locks is 0.5 N·m to 1.5 N·m.

Trust Checks

Community Provided

System Verified

Community Approved

DF19L-14P-1H(52) Overview

Use the download button to access the DF19L-14P-1H(52) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DF19L, or try a keyword search, such as Headers and Edge Type Connectors
