DF20F-10DP-1V(57) footprint, schematic symbol and 3D model by Hirose

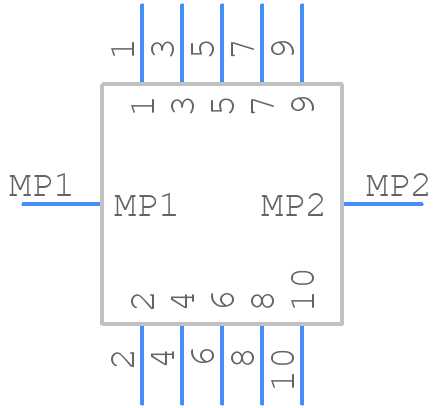

Symbol

click to zoom

PCB Footprints

DF20F-10DP-1V(57) - Hirose PCB footprint - Other - Other - DF20F-10DP-1V(57)

click to zoom

3D Models

DF20F-10DP-1V(57) - Hirose - 3D model - Other - DF20F-10DP-1V(57)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DF20F-10DP-1V(57)
Part Number DF20F-10DP-1V(57)
Manufacturer Hirose
Pin Count 12
Part Category Connector
Package Category Other
Footprint Name Other - DF20F-10DP-1V(57)
Released Date Oct 6, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DF20F-10DP-1V(57) Details

Manufacturer Part Number:
DF20F-10DP-1V(57)
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Hirose Electric Co Ltd
YTEOL:
0
Body Breadth:
0.213 inch
Body Depth:
0.181 inch
Body Length:
0.287 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
AU
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Resistance:
30 mΩ
Contact Style:
BLADE PIN-SKT
Dielectric Withstanding Voltage:
300VAC V
Durability:
50 Cycles
Filter Feature:
NO
Insertion Force-Max:
2.0016 N
Insulation Resistance:
500000000 Ω
Insulator Color:
BEIGE
Insulator Material:
POLYAMIDE
Mating Contact Pitch:
0.039 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-35 °C
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
5.588 mm
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
1 A
Reference Standard:
UL
Terminal Pitch:
0.9906 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
10
Withdrawl Force-Min:
.199882 N

DF20F-10DP-1V(57) Frequently Asked Questions (FAQs)

The recommended mating sequence is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Yes, the DF20F-10DP-1V(57) connector is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and securing of the connector.
The maximum operating temperature range for the DF20F-10DP-1V(57) connector is -40°C to +105°C. However, it's recommended to derate the connector's performance at extreme temperatures.
The DF20F-10DP-1V(57) connector has a moisture-resistant design, but it's not fully waterproof. It's recommended to use additional sealing or protection measures if the connector will be exposed to high humidity or water.
The recommended torque value for the DF20F-10DP-1V(57) connector's screw locks is 0.5 N·m to 1.5 N·m. Over-tightening can damage the connector, so it's essential to follow the manufacturer's guidelines.

Trust Checks

Community Provided

System Verified

Community Approved

DF20F-10DP-1V(57) Overview

Use the download button to access the DF20F-10DP-1V(57) schematic symbol, PCB footprint, and 3D model.
