DF20G-40DP-1V(56) - Hirose

Description: Headers & Wire Housings 40P DR SMT PIN HDR WITH BOSS

Download DF20G-40DP-1V(56) Model

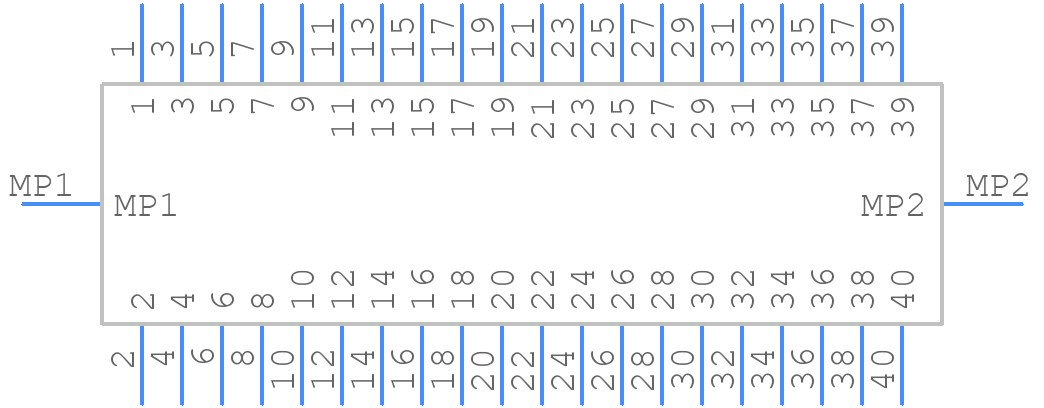

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DF20G-40DP-1V(56) - Hirose PCB footprint - Other - Other - DF20G-40DP-1V(56)-2
click to zoom
3D Models
DF20G-40DP-1V(56) - Hirose  - 3D model - Other - DF20G-40DP-1V(56)-2
click to zoom

DF20G-40DP-1V(56) Details

  • Manufacturer Part Number:

    DF20G-40DP-1V(56)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • parentfamilyid:

    1835417

  • Ihs Manufacturer:

    HIROSE ELECTRIC CO LTD

  • Datasheet Url:

    https://4donline.ihs.com/images/VipMasterIC/IC/HIRO/HIRO-S-A0003488467/HIRO-S-A0003488467-1.pdf?hkey=EF798316E3902B6ED9A73243A3159BB0

  • Objectid:

    1714748085

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    LOW PROFILE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    300VAC V

  • Durability:

    50 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    500000000 Ω

  • Insulator Color:

    BEIGE

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.039 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -35 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    5.588 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Reference Standard:

    UL

  • Terminal Pitch:

    1 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF20G-40DP-1V(56) Overview

Use the download button to access the DF20G-40DP-1V(56) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF20G, or try a keyword search, such as Headers and Edge Type Connectors
