Description:The H8S/2148, 2144 Group is supported only for customers who have already adopted these products. The RX230 Group is recommended for new designs.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system, such as a heat sink or fan.
The input capacitor should be a low-ESR, high-frequency capacitor with a minimum capacitance of 10uF and a voltage rating of at least 25V. The capacitor should be placed as close as possible to the VIN pin to minimize noise and ensure stable operation.
To troubleshoot POR issues, check the power supply voltage, ensure the input voltage is within the recommended range, and verify that the POR pin is properly connected and not shorted to GND or VCC. Also, review the device's POR timing and threshold settings to ensure they are correctly configured.
Operating the device at a lower voltage than the recommended 20V may affect its performance, efficiency, and reliability. It's essential to consult the datasheet and application notes to understand the trade-offs and potential issues that may arise from operating at a lower voltage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DF2148AFA20V Overview

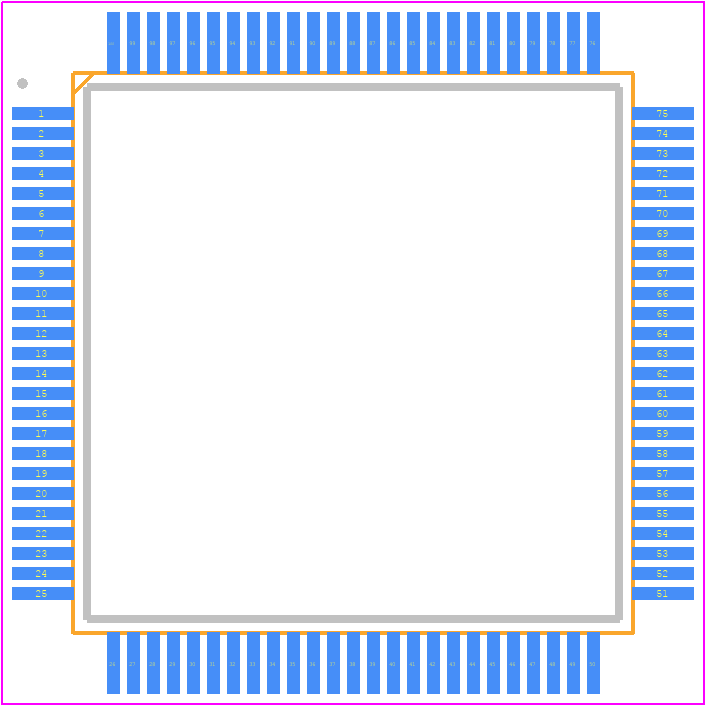

Use the download button to access the DF2148AFA20V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF214,
or try a keyword search, such as Microcontrollers
