DF2167VT33V - Renesas Electronics

Description: The H8S/2168 Group is supported only for customers who have already adopted these products. The RX651, RX210 Groups are recommended for new designs.

Download DF2167VT33V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

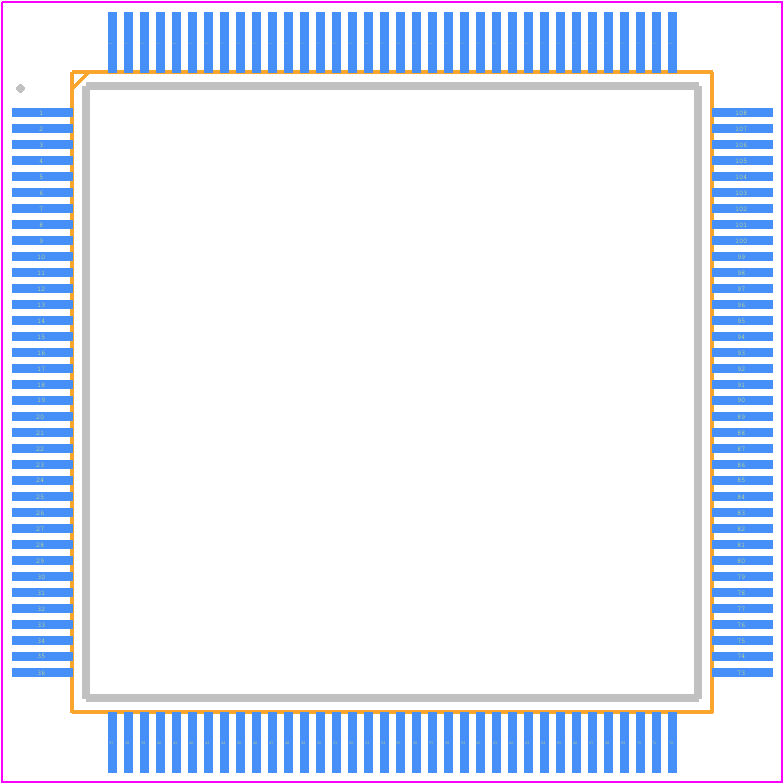

DF2167VT33V - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - TFP-144
click to zoom
3D Models
DF2167VT33V - Renesas Electronics  - 3D model - Quad Flat Packages - TFP-144
click to zoom

DF2167VT33V Details

  • Manufacturer Part Number:

    DF2167VT33V

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TFQFP

  • Pin Count:

    144

  • Manufacturer Package Code:

    PTQP0144LC

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Address Bus Width:

    24

  • Bit Size:

    16

  • Boundary Scan:

    YES

  • CPU Family:

    H8S/2000

  • Clock Frequency-Max:

    33 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • External Data Bus Width:

    16

  • JESD-30 Code:

    S-PQFP-G144

  • Length:

    16 mm

  • Number of I/O Lines:

    114

  • Number of Terminals:

    144

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP144,.7SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    40960

  • ROM (words):

    393216

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.2 mm

  • Speed:

    33 MHz

  • Supply Current-Max:

    55 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    16 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

DF2167VT33V Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the IC.
  • Implement a robust thermal management system, including a heat sink and thermal interface material. Ensure good airflow and avoid thermal hotspots.
  • Critical timing parameters include the clock frequency, clock duty cycle, and setup/hold times for the input signals. Refer to the datasheet for specific values.
  • Use a logic analyzer or oscilloscope to monitor signal integrity and timing. Check for power supply noise, signal attenuation, and incorrect pin connections.
  • Use 0.1 μF to 1 μF ceramic capacitors with a voltage rating of 10 V or higher, placed as close to the IC as possible.
