DF3052BF25V - Renesas Electronics

Description: The H8/3052B Group is supported only for customers who have already adopted these products. The RL78/G14 Group is recommended for new designs.

Download DF3052BF25V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

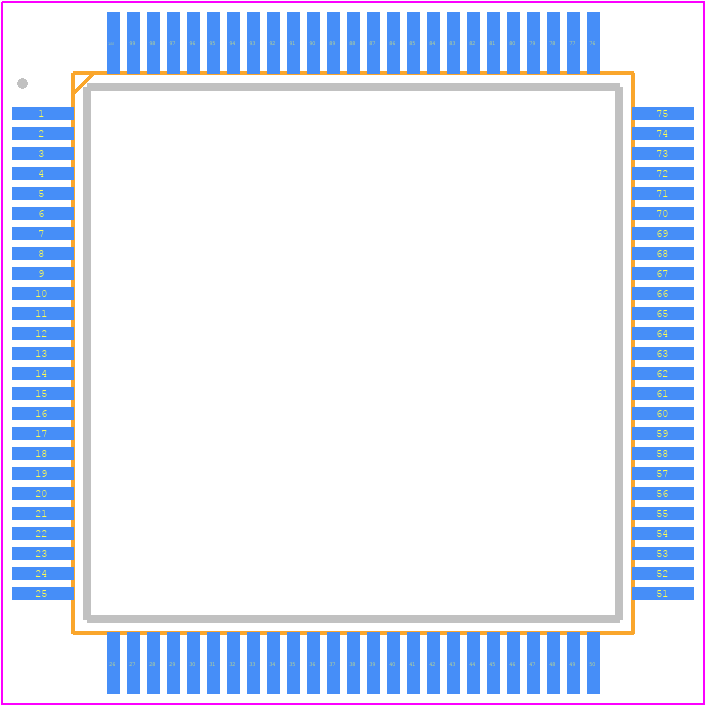

DF3052BF25V - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - FP-100B
click to zoom
3D Models
DF3052BF25V - Renesas Electronics  - 3D model - Quad Flat Packages - FP-100B
click to zoom

DF3052BF25V Details

  • Manufacturer Part Number:

    DF3052BF25V

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    FQFP

  • Package Description:

    14 X 14 MM, 3.05 MM HEIGHT, 0.50 MM, ROHS COMPLIANT, PLASTIC, FQFP-100

  • Pin Count:

    100

  • Manufacturer Package Code:

    PRQP0100KA

  • HTS Code:

    8542.31.00.20

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Address Bus Width:

    24

  • Bit Size:

    16

  • Clock Frequency-Max:

    25 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • External Data Bus Width:

    16

  • JESD-30 Code:

    S-PQFP-G100

  • Length:

    14 mm

  • Number of I/O Lines:

    78

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    75 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    3.05 mm

  • Speed:

    25 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER
