DF36064GHV - Renesas Electronics

Description: The H8/36064 Group is supported only for customers who have already adopted these products. The RL78/G14 Group is recommended for new designs.

Download DF36064GHV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DF36064GHV - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

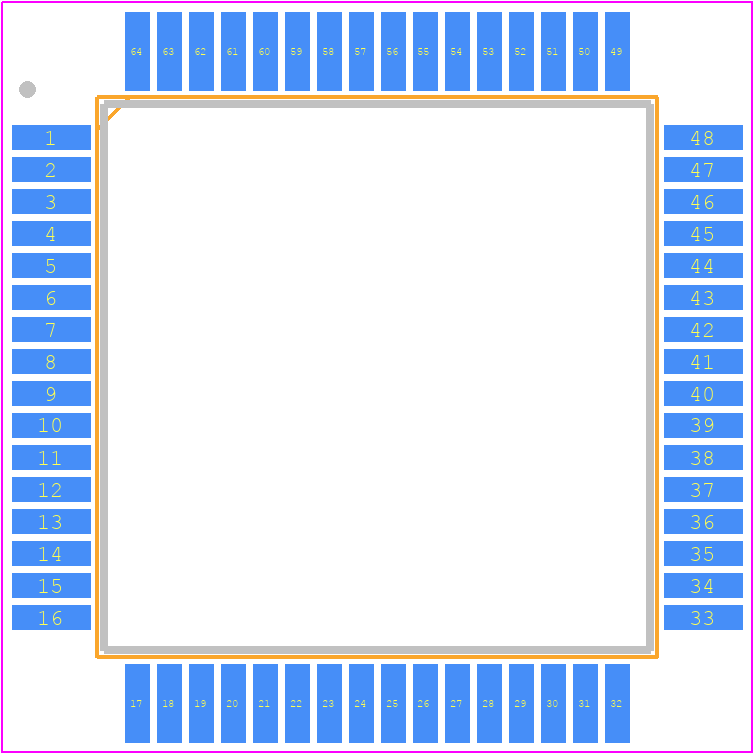

DF36064GHV - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PRQP0064GB-A-2021
click to zoom
3D Models
DF36064GHV - Renesas Electronics - 3D model - Quad Flat Packages - PRQP0064GB-A-2021
click to zoom

DF36064GHV Details

  • Manufacturer Part Number:

    DF36064GHV

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Pin Count:

    64

  • Manufacturer Package Code:

    PRQP0064GB

  • HTS Code:

    8542.31.00.20

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Bit Size:

    16

  • CPU Family:

    H8/300H

  • JESD-30 Code:

    S-PQFP-G64

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP64,.66SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    2048

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Speed:

    20 MHz

  • Supply Current-Max:

    30 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

DF36064GHV Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN3606EU0100) which includes thermal vias, thermal pads, and heat sink recommendations to ensure optimal thermal performance.
  • The DF36064GHV has a built-in overcurrent protection (OCP) feature. To implement OCP, set the OCP threshold using the ILM pin and configure the OCP response using the OCPEN pin. Refer to the datasheet for specific pin configurations and threshold settings.
  • The maximum operating frequency for the DF36064GHV is 64 MHz. However, the actual operating frequency may vary depending on the system design, clock source, and other factors. Consult the datasheet and application notes for specific frequency-related recommendations.
  • The DF36064GHV has multiple low-power modes, including Sleep, Stop, and Hibernate. Configure the power modes using the Power Management Unit (PMU) registers and follow the recommended procedures outlined in the datasheet and application notes.
  • Renesas recommends using 0.1 μF to 1 μF decoupling capacitors for the VCC and AVCC power pins, and 10 μF to 22 μF decoupling capacitors for the VBAT power pin. The actual capacitor values may vary depending on the system design and noise requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF36064GHV Overview

Use the download button to access the DF36064GHV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF360, or try a keyword search, such as Microcontrollers
