The recommended mating cycle for the DF37B-24DP-0.4V(53) connector is 20-30 cycles. However, it's essential to consult with Hirose Electric Co Ltd or an authorized distributor for specific guidance on mating cycles, as it may vary depending on the application and environmental conditions.
To ensure proper polarization, make sure to align the keyway on the plug with the notch on the receptacle. The keyway is typically located on the top of the plug, and the notch is on the receptacle. Proper alignment will prevent incorrect mating and potential damage to the connector.
The recommended torque for the screw locks on the DF37B-24DP-0.4V(53) connector is 0.5-1.0 N·m (0.37-0.73 lbf·in). However, it's essential to consult the datasheet or contact Hirose Electric Co Ltd for specific guidance on torque values, as they may vary depending on the application and environmental conditions.
The DF37B-24DP-0.4V(53) connector is designed to withstand moderate vibration and shock. However, for high-vibration or high-shock applications, it's recommended to consult with Hirose Electric Co Ltd or an authorized distributor to determine the connector's suitability and potential modifications or additional components required to ensure reliable operation.
The operating temperature range for the DF37B-24DP-0.4V(53) connector is -40°C to 85°C (-40°F to 185°F). However, it's essential to consult the datasheet or contact Hirose Electric Co Ltd for specific guidance on temperature ranges, as they may vary depending on the application and environmental conditions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DF37B-24DP-0.4V(53) Overview

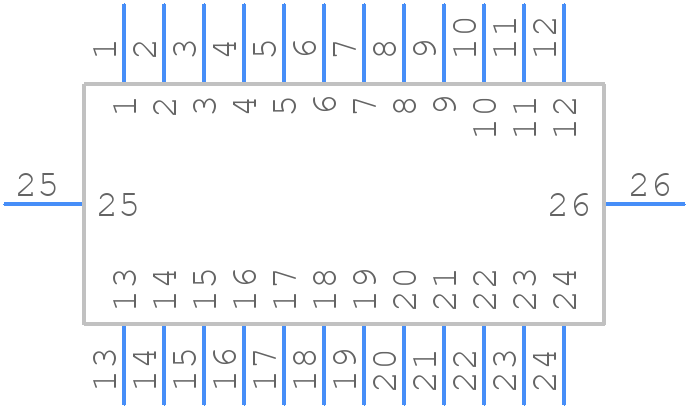

Use the download button to access the DF37B-24DP-0.4V(53) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DF37B,
or try a keyword search, such as Headers and Edge Type Connectors
