DF37B-24DS-0.4V(51) - Hirose

Description: 24 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

Download DF37B-24DS-0.4V(51) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

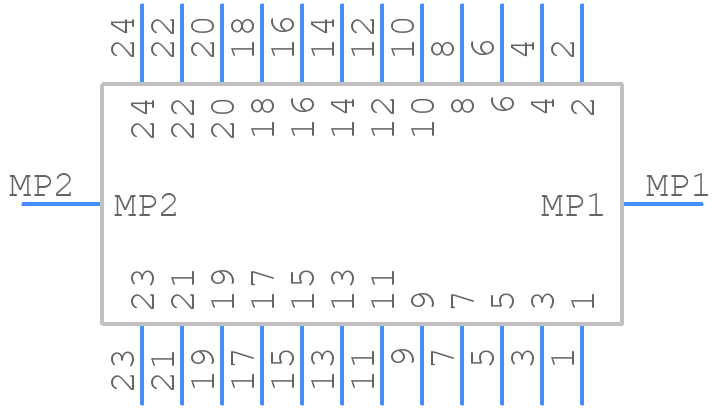

DF37B-24DS-0.4V(51) - Hirose - PCB symbol
click to zoom
PCB Footprints
DF37B-24DS-0.4V(51) - Hirose PCB footprint - Other - Other - DF37B-24DS-0.4V(51)-7
click to zoom
3D Models
DF37B-24DS-0.4V(51) - Hirose - 3D model - Other - DF37B-24DS-0.4V(51)-7
click to zoom

DF37B-24DS-0.4V(51) Details

  • Manufacturer Part Number:

    DF37B-24DS-0.4V(51)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    0

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    TIN

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.4 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    24

  • UL Flammability Code:

    94V-0

DF37B-24DS-0.4V(51) Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the DF37B-24DS-0.4V(51) connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the DF37B-24DS-0.4V(51) connector is designed to withstand high-vibration environments. However, it's essential to follow the recommended torque values and mounting procedures to ensure reliable connections.
  • Yes, the DF37B-24DS-0.4V(51) connector is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
  • The maximum operating temperature for the DF37B-24DS-0.4V(51) connector is 125°C. However, it's essential to note that the connector's performance may degrade at higher temperatures, and it's recommended to consult the datasheet for specific temperature ratings.
  • The DF37B-24DS-0.4V(51) connector has a IP67 rating, which means it can withstand exposure to water and dust. However, it's essential to follow the recommended sealing and potting procedures to ensure reliable connections in harsh environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DF37B-24DS-0.4V(51) Overview

Use the download button to access the DF37B-24DS-0.4V(51) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF37B, or try a keyword search, such as Headers and Edge Type Connectors
