The recommended mating cycle for the DF37NB-20DS-0.4V(51) connector is 20-30 cycles. However, it's essential to consult with Hirose Electric Co Ltd or an authorized distributor for specific guidance on mating cycles, as it may vary depending on the application and environmental conditions.
To ensure proper polarization, align the keyway on the plug with the notch on the receptacle. The keyway is typically located on the plug's mating face, and the notch is on the receptacle's mating face. Proper alignment ensures correct polarization and prevents damage to the connector.
The recommended torque for securing the DF37NB-20DS-0.4V(51) connector is typically between 0.5-1.5 N·m (5-15 in-lbs). However, it's essential to consult the datasheet or contact Hirose Electric Co Ltd for specific torque recommendations, as excessive torque can damage the connector.
The DF37NB-20DS-0.4V(51) connector is designed for general-purpose applications. If you need a connector for high-vibration or high-shock applications, consider using a connector specifically designed for those environments, such as Hirose's DF37NB-VS series. Consult with Hirose Electric Co Ltd or an authorized distributor for guidance on selecting the appropriate connector for your application.
Use a soft, dry brush or a lint-free cloth to gently remove any debris or contaminants from the connector contacts. Avoid using chemicals, solvents, or abrasive materials, as they can damage the connector. For more aggressive cleaning, consult the datasheet or contact Hirose Electric Co Ltd for recommended cleaning procedures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DF37NB-20DS-0.4V(51) Overview

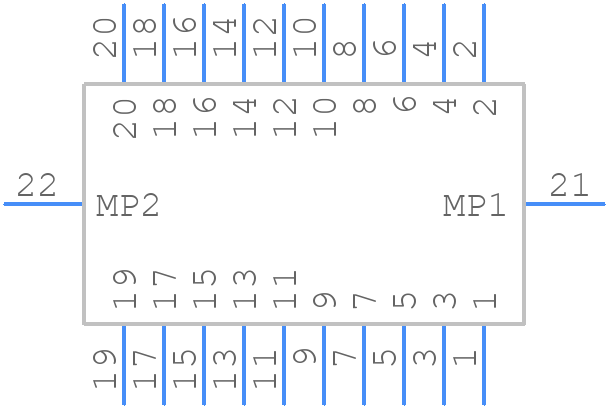

Use the download button to access the DF37NB-20DS-0.4V(51) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DF37N,
or try a keyword search, such as Headers and Edge Type Connectors
